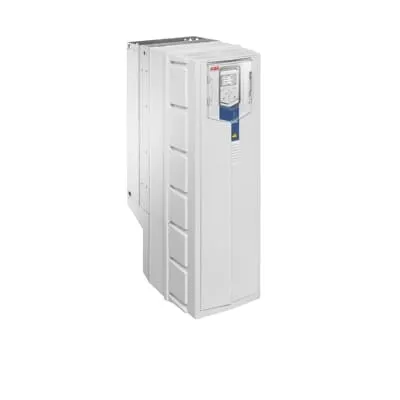

ABB ACQ580-01-246A-4+B056 Motors & Drives - IP21
Part Number: 3ABD00045730-D
Quick Summary
ACQ580-01-246A-4+B056 drive is a LV AC wall-mounted drive for water and wastewater pumping. Operators struggle with energy waste, pump wear, and downtime when controls are not matched to system dynamics. This model is CE compliant and offered with IP21 protection, with optional IP55 and flange mounting to address tougher indoor environments. Built-in sensorless flow calculation, level control, and a compact form factor simplify installation and reduce spare parts. Integrated energy calculator and compatibility with Drive Composer and Hand-Off-Auto panel deliver measurable ROI and easier maintenance for water utilities and industrial pump stations.
Product Information
Extended Description
3ABD00045730-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature sensorless flow calculation → Business Impact enables precise, telemetry-free flow estimation, reducing sensor costs and improving pump efficiency; Application ideal for municipal and industrial water handling. Feature multipump control → Business Impact minimizes wiring complexity and energy waste in multi-pump systems, improving uptime and control scalability; Application suited for wastewater pump stations. Feature level control and dry run protection → Business Impact protects pumps from running dry and maintains process stability, lowering maintenance costs; Application in lift stations and treatment plants. Feature soft pipe fill and quick ramps → Business Impact reduces surge pressure and mechanical stress, extending pipe and valve life; Application during start-stop cycles in variable-demand scenarios. Feature built-in energy calculator → Business Impact quantifies energy savings for ROI justification and ongoing budgeting; Application for energy management in utilities and process industries. Feature intuitive Hand-Off-Auto control, Drive Composer compatibility, and optional Bluetooth control panel → Business Impact streamlines commissioning, field service, and remote diagnostics, accelerating project timelines; Application across new installations and retrofit projects. Compatibility and installation advantages include IP21 standard enclosure with IP55 and flange mounting options, compact wall-mounted design, and seamless integration with ABB drives ecosystems, reducing the need for secondary cabinets and simplifying retrofits.
Get a Quick Quote for a ABB 3ABD00045730-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045730-D?
Enquire Now
FAQs
Installation begins with selecting a stable wall mounting location that accommodates the IP21 enclosure and provides adequate ventilation. Mount the drive securely, route power and motor cables with proper separation, and connect to the control panel or Drive Composer. Ensure clearances for service access, use the appropriate mounting options for IP55 if needed, and follow ABB's wiring diagrams and safety guidelines for municipal or industrial pump rooms.
This model delivers up to 132 kW nominal power and draws up to 246 A, with sensorless flow calculation to optimize pump performance. It supports multipump control, level control, dry-run protection, soft pipe fill, and quick ramps. The drive also includes an energy calculator to quantify savings, and integrates with Drive Composer for configuration and commissioning.
Yes. The ACQ580-01-246A-4+B056 includes multipump control, enabling coordinated operation of several pumps from a single drive or interconnected drives. This reduces wiring complexity, enhances orchestration of sequential or parallel pumping, and improves overall energy efficiency by matching pump output to fluctuating demand in wastewater handling scenarios.
The drive carries CE compliance for EU regulatory alignment and ships with an IP21 enclosure as standard, offering dependable indoor protection. Optional IP55 enclosure and flange mounting units expand suitability to harsher indoor environments and specific installation constraints. These features help ensure regulatory alignment while supporting reliable operation in water and wastewater applications.
ROI is driven by measurable energy savings from optimized pump control, reduced downtime due to dry-run protection, and lower maintenance costs from built-in protection features. The integrated energy calculator helps justify investment, while Drive Composer and the optional Bluetooth panel streamline commissioning, diagnostics, and remote support, delivering faster project delivery and lower lifecycle costs.
