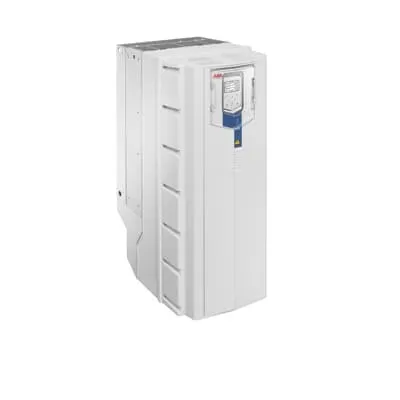

ABB 3ABD00045732-D LV AC wall-mounted drive - IP21/IP55
Part Number: 3ABD00045732-D
Quick Summary
ABB 3ABD00045732-D LV AC wall-mounted drive powers water and wastewater pumping efficiently. Engineers facing rising energy costs and variable demand will appreciate faster tuning, reliable operation, and reduced instrumentation needs. The drive is CE-certified and delivered with IP21 protection as standard, with IP55 and flange mounting options for harsher environments. Its built-in pump features—sensorless flow calculation, multipump control, and level management—help optimize process performance and minimize wear. Energy analytics and quick ramping support measurable savings, while the intuitive Hand-Off-Auto panel and Drive Composer PC tool streamline commissioning. Optional Bluetooth connectivity adds remote tuning and diagnostics, boosting uptime and enabling data-driven maintenance strategies.
Product Information
Extended Description
3ABD00045732-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation and multipump control provide precise pumping without external sensors. Business impact: reduces instrumentation costs, simplifies maintenance, and improves energy efficiency by aligning flow with actual demand. Application: municipal water networks and wastewater lift stations requiring coordinated operation of multiple pumps. Feature: Level control and dry run protection safeguard pumps during low or no flow, preventing dry running and minimizing wear. Business impact: extends pump life, reduces downtime, and lowers maintenance costs. Application: basins and elevated tanks where automated level management is essential. Feature: Built-in energy calculator and quick ramp profiles quantify energy savings and deliver smoother starts. Business impact: lowers energy bills and extends motor life by controlling ramp rates and acceleration. Application: variable speed pumping in distribution networks and treatment facilities. Feature: Compact wall-mounted enclosure with IP21 standard and optional IP55 or flange mounting kits eases installation in restricted spaces. Business impact: faster commissioning, safer wiring, and improved retrofit compatibility. Application: plant control rooms and relay rooms where wall space is at a premium. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth panel offer intuitive setup and remote diagnostics. Business impact: reduces on-site labor, accelerates commissioning, and supports proactive maintenance. Application: commissioning teams and service engineers deploying pumps in water and wastewater facilities. Feature: Compatibility with ABB pump technology and standard industrial interfaces ensures straightforward integration with existing control schemes. Business impact: minimizes project risk, shortens integration time, and supports scalable plant modernization. Application: utilities and industrial facilities adopting digital automation for pumping systems.
Get a Quick Quote for a ABB 3ABD00045732-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045732-D?
Enquire Now
FAQs
The ABB 3ABD00045732-D is designed for wall mounting with IP21 protection as standard and optional IP55 or flange mounting kits. This enables flexible installation in tight control rooms or outdoor-rated setups, reducing footprint while maintaining easy access for cabling, maintenance, and future upgrades.
Sensorless flow calculation uses motor and drive data to estimate flow, reducing the need for external sensors. This lowers installation costs, minimizes maintenance, and improves response to demand changes, delivering more stable pressure and flow in municipal and industrial pumping applications.
Yes. The drive includes multipump control, enabling coordinated operation of several pumps. This reduces surge, optimizes energy use, and simplifies sequencing in plants with parallel pumping, lift stations, or district meter assemblies, all while maintaining reliable protection and level management.
The drive is CE-certified for compliant European operations and features IP21 protection as standard, with IP55 and flange-mount options available for harsher environments. These ratings support safe operation in typical water treatment and distribution facilities and aid regulatory alignment.
ABB provides the Hand-Off-Auto panel for local control, the Drive Composer PC tool for configuration and commissioning, and an optional Bluetooth control panel for remote setup and diagnostics. These tools shorten commissioning times and enable proactive maintenance in field deployments.
