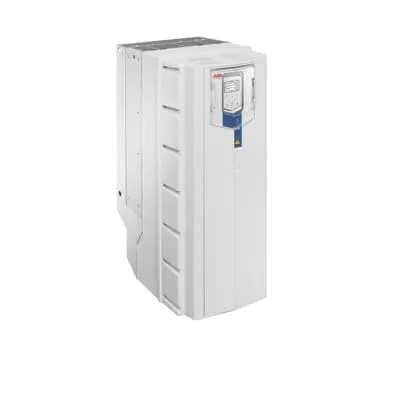

ABB 3ABD00045733-D LV AC Wall-Mounted Drive - IP21
Part Number: 3ABD00045733-D
Quick Summary
ABB 3ABD00045733-D LV AC wall-mounted drive for water and wastewater applications delivers precise pump control and energy optimization. Operators often grapple with wasted energy and frequent pump wear when systems run inefficiently at variable flow. This drive supports IP21 enclosure as standard with IP55 as an option, meeting typical water industry protection requirements, while offering sensorless flow calculation, dry-run protection, and level control to safeguard assets. Built-in energy calculation and intuitive interfaces—Hand-Off-Auto, Drive Composer, and optional Bluetooth panel—enable faster commissioning, easier troubleshooting, and a clear path to lower operating costs.
Product Information
Extended Description
3ABD00045733-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump application functionality including sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection. Business impact: reduces energy waste, extends pump life, and minimizes unscheduled downtime by enabling precise, automatic control across multiple pumps and fluid levels. Application: ideal for water and wastewater pumping stations and treatment facilities. Feature: Quick ramps and an integrated energy calculator. Business impact: accelerates commissioning and provides measurable energy savings by optimizing start/stop profiles and monitoring consumption in real time. Application: plant-wide control of variable-speed pumps to meet fluctuating demand with minimal heat generation and wear. Feature: Intuitive interfaces and toolchains including Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth control panel. Business impact: simplifies setup, commissioning, and remote diagnostics, reducing maintenance labor and downtime. Application: field deployments where technicians require quick access to configuration and performance data. Feature: Flexible enclosure and mounting options with IP21 standard and IP55 option plus flange mounting units. Business impact: enables easy integration into existing plant layouts and harsh environments, improving installation speed and protection. Application: retrofits and new builds in water/wastewater facilities seeking robust protection and adaptable mounting. Feature: Reliability and governance for compliance and safety. Business impact: sensorless flow technology minimizes external sensor dependency, while protective features support regulatory and safety requirements, delivering predictable performance in demanding environments. Application: municipal and industrial pumping ecosystems needing dependable operation and predictable ROI.
Get a Quick Quote for a ABB 3ABD00045733-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045733-D?
Enquire Now
FAQs
The 3ABD00045733-D is designed for wall-mounted installation with standard IP21 protection and IP55 option availability. It supports propulsion control for multiple pumps and integrates with common plant PLCs and panel boards. For retrofits, verify motor ratings, wiring gelt, and available flange mounting options; use Drive Composer for configuration to ensure seamless compatibility with existing pump and sensor networks.
Sensorless flow calculation derives flow estimates from motor current and speed, reducing the need for external flow sensors. This simplifies installation, lowers capital cost, and maintains accurate pump pro- gression in wastewater and water applications. It enhances protection features like dry-run and enables reliable multipump sequencing in variable demand scenarios.
Yes, the drive offers multipump control, allowing coordinated sequencing and level-based switching between pumps. This reduces startup energy, extends pump life by balancing run-time, and improves system resilience during peak flows or partial plant outages. It’s especially advantageous in lift stations and treatment facilities with fluctuating demand.
The standard enclosure is IP21, suitable for indoor, dry environments. Optional IP55-rated enclosures and flange mounting units provide enhanced environmental protection and installation flexibility, enabling wall or surface mounting in harsher facilities. Ensure correct derating and cooling where IP55 is used, and align with local electrical codes for safe operation.
The integrated energy calculator, sensorless control, and dry-run protection contribute to lower energy use and reduced maintenance costs by preventing pump damage and unnecessary wear. Easy commissioning via Hand-Off-Auto and Drive Composer shortens project timelines and minimizes commissioning labor, delivering a favorable total cost of ownership over the system’s lifetime.
