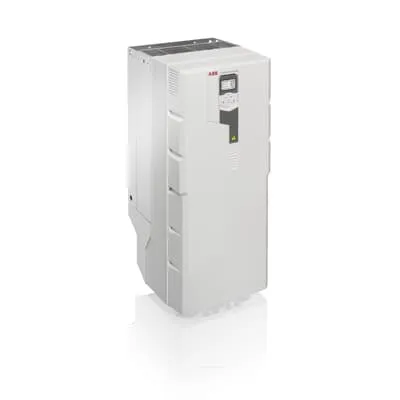

ABB 3ABD00045764-D LV AC wall-mounted drive - IP21
Part Number: 3ABD00045764-D
Quick Summary
ABB 3ABD00045764-D LV AC wall-mounted drive is a general purpose drive that provides precise motor control for compressors, conveyors, and pumps. Engineers often grapple with lengthy setup, complex tuning, and downtime when deploying variable speed drives. The drive family offers built-in features, a straightforward settings menu, and a rugged design with IP21 standard enclosure and optional IP55 or flange mounting units to fit challenging installations. This combination reduces commissioning time and maintenance costs while delivering stable process control. In addition, the solution supports energy management goals and scalable automation, aligning with broader plant digitalization initiatives and improving total cost of ownership for the process industries it targets, including food & beverage, plastics, and material handling.
Product Information
Extended Description
3ABD00045764-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature plug-in readiness and plug-in ready installation reduces wiring, cabinet footprint, and commissioning time, delivering faster project delivery and lower installation costs. Business impact includes accelerated time-to-value and improved reliability when upgrading to variable speed control in conveyors and pumps. Application: new lines or retrofit projects with compressors and material handling systems. Feature built-in essential controls and an intuitive settings menu enables rapid configuration, minimizing commissioning errors and post-startup adjustments. Application: plants seeking fast ramp-up and easier ongoing maintenance. Feature rugged, robust design supports diverse environments, delivering higher operational uptime and reduced service interruptions. Application: food & beverage, plastics, textile, and agriculture environments where reliability matters. Feature IP21 standard enclosure with IP55 and flange mounting options provides flexible integration and protection where space or exposure constraints exist. Application: retrofits in tight cabinets or harsh plant locations. Feature compatibility with standard motors and straightforward wiring reduces spare-part variety and enables smooth retrofits or expansions. Application: upgrades to existing motor fleets without disruptive rewiring. Feature energy-management-ready controls and torque/speed options help optimize energy use and process stability. Application: processes with variable torque loads and frequent start-stop cycles, boosting efficiency.
Get a Quick Quote for a ABB 3ABD00045764-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045764-D?
Enquire Now
FAQs
This drive is plug-in ready for quick integration with existing 3-phase motors. It ships with an IP21 enclosure as standard, with IP55 and flange-mount options available for tighter spaces or harsher environments. When retrofitting, verify motor compatibility (Pn 200 kW, 363 A) and ensure control wiring conforms to standard field-bus and wiring practices to minimize downtime.
The unit delivers up to 200 kW and 363 A, supporting both variable and constant torque applications. Its built-in features, simple setup, and robust hardware enable precise speed control, smooth acceleration, and reliable process stability. This combination reduces energy waste, improves throughput, and lowers maintenance needs in conveyor lines and compressor networks.
Applications include compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. Industries such as food & beverage, plastics, textile, material handling, and agriculture benefit from the drive’s rugged design, reliable control, and easy commissioning. The enclosure options support safe operation in production environments with space constraints or exposure to dust and moisture.
The drive is provided with an IP21 enclosure as standard, with IP55 and flange mounting options available to increase protection and mounting flexibility. While IP ratings are the primary protection feature highlighted, ABB’s ACS580 series is designed for industrial environments, enabling consistent performance across varied process conditions and ensuring safe, reliable operation.
By simplifying setup through built-in features and assistants, the drive reduces commissioning time and operator error, lowering upfront labor costs. Its robust build and optional mounting configurations improve uptime in critical lines like compressors and conveyors, delivering lower maintenance costs and quicker ROI through energy efficiency and consistent process control.
