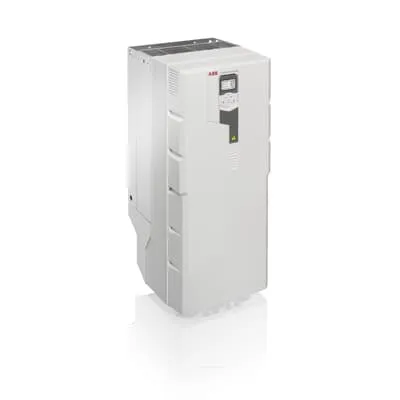

ABB ACS580-01-430A-4+0J400 Drive - IP21 Wall-Mounted
Part Number: 3ABD00045765-D
Quick Summary
ABB ACS580-01-430A-4+0J400 wall-mounted LV AC drive provides precise speed control for compressors, conveyors, pumps, and other loads in light industrial settings. Plug-in readiness and built-in setup assistants reduce commissioning time and spare-part needs, helping engineers avoid project delays and costly downtime. The drive delivers protection and reliability through a rugged design, standard IP21 enclosure, and optional IP55 variants and flange mounting for tougher environments. In modern industrial automation, this solution supports scalable control platforms, delivering improved energy efficiency, safer startups, and tighter process control across food and beverage, plastics, textiles, and material handling. It combines compact installation with robust control, enabling straightforward maintenance and long-term total cost of ownership improvements.
Product Information
Extended Description
3ABD00045765-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Plug-in ready and wall-mounted design reduces hardware footprint and expedites installation, cutting on-site wiring and commissioning time while simplifying future maintenance. This translates to faster project timelines and lower initial capital expenditure for motor-driven equipment such as compressors, fans, and pumps. The Pn 200 kW, 430 A rating provides robust torque control for high-demand loads, enabling stable speed regulation and smoother starts that minimize mechanical stress and energy spikes. Built-in configuration assistants and a straightforward settings menu shorten training needs and support rapid commissioning, enabling engineers to deploy scalable automation rapidly across multiple lines. The standard IP21 enclosure protects electronics in general environments, with IP55 and flange-mount options designed for harsher plants or space-constrained installations, reducing enclosure costs and expanding installation flexibility. A rugged, purpose-built design improves reliability, minimizes downtime, and lengthens mean time between failures, delivering tangible reductions in maintenance overhead and total installed cost. This drive aligns with modern automation needs by supporting energy-efficient operation, safer startups, and consistent process control across diverse industries such as food & beverage, plastics, textiles, and material handling.
Get a Quick Quote for a ABB 3ABD00045765-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045765-D?
Enquire Now
FAQs
Begin with a secure wall mount suitable for the drive's weight, ensuring ventilation and clearance for cooling. Connect the 3-phase power supply to the drive input, attach the motor to the output terminals, and wire control signals according to the user manual. Use the built-in setup assistants to configure motor parameters, and verify IP21 protection is intact in standard installations. For IP55 or flange-mount variants, follow the specific mounting guidelines and thermal management recommendations to maintain performance under harsher conditions.
The drive is designed for general-purpose LV AC control of loads such as compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. With a rating of Pn 200 kW and 430 A, it supports medium- to high-power applications typical in light industries, enabling precise speed control and torque management across a broad range of rotational loads.
Yes, IP55 mounting is available as an option. This expands installation possibilities for environments with higher dust or moisture exposure, such as certain food & beverage processing, plastics, and material handling facilities. Flange mounting and other enclosure configurations further improve adaptability, reducing the need for additional protective housings and enabling more compact layouts.
By providing precise speed control and smooth start/stop profiles, the ACS580-01-430A-4+0J400 reduces motor energy consumption and mechanical wear. Built-in configuration tools shorten commissioning and allow consistent operation, lowering maintenance writes and downtime. The rugged design and standard enclosure protect electronics, contributing to longer service life and lower total cost of ownership over the drive’s lifecycle.
Plan for standard three-phase power input, motor output connections, and control wiring that matches your PLC or automation system using compatible signaling and safety interlocks. The drive supports plug-in installation with straightforward parameter transfer via the built-in menu, simplifying integration with ABB or third-party control platforms. When upgrading to IP55 or flange-mount variants, ensure correct enclosure selection and adequate cooling to maintain performance under extended duty cycles.
