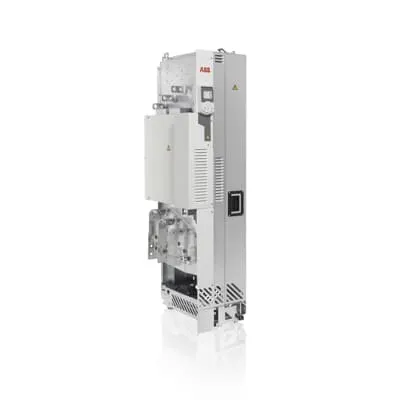

ABB 3ABD00045775-D ACS580-04 Drive Module - IP00/IP20 Enclosures
Part Number: 3ABD00045775-D
Quick Summary
ABB ACS580-04 drive module is a plug‑in ready low‑voltage AC drive that provides precise motor control for compressors, conveyors, pumps, and other equipment in general‑purpose automation. Engineers often struggle with lengthy setup, cabling complexity, and unpredictable commissioning when integrating drives into control cabinets. This model aligns with common industry standards, offering an IP00 standard enclosure with an IP20 option to fit cabinet environments, and typical CE‑mark readiness across ABB drives. With built‑in setup assistants and a rugged design, it enables fast commissioning, easier maintenance, and reliable process control, delivering measurable energy efficiency gains and reduced downtime in industrial automation environments.
Product Information
Extended Description
3ABD00045775-D ABB: The ACS580-04 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design makes it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The ACS580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Plug‑in ready control and built‑in features reduce hardware needs and simplify installation, delivering lower upfront costs and faster time to production. The ACS580‑04 is engineered to handle high‑duty applications such as compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans, enabling precise speed and torque control to optimize process efficiency. The intuitive settings menu and assistants minimize commissioning effort, shorten training cycles, and support consistent operation across multiple machines or lines. The rugged design withstands industrial environments, enhancing reliability and reducing maintenance costs over the drive’s lifecycle. IP00 standard enclosure is standard while IP20 options expand cabinet integration flexibility, ensuring compatibility with existing control panels. This combination supports safer panel layouts and easier retrofits in high‑power loads (up to 355 kW, 650 A).
Get a Quick Quote for a ABB 3ABD00045775-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00045775-D?
Enquire Now
FAQs
The ACS580-04 is a plug-in ready, low-voltage drive designed for cabinet installations. It ships with an IP00 enclosure as standard and offers an IP20 option for more demanding environments. Ensure proper ventilation and heat dissipation, plan for cable routing that minimizes EMI, and use the built-in setup assistants to streamline wiring and configuration during commissioning.
Key specs include a power rating of 355 kW and a current rating of 650 A. It is a general purpose LV AC drive with plug-in readiness, standard IP00 enclosure and IP20 option, designed to control motors across a range of applications such as compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans.
Yes. The ACS580-04 is designed for a broad set of loads, including compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. Its variable speed control helps optimize torque and flow, improving process efficiency, reducing energy usage, and extending equipment life in continuous operation environments.
This module includes an IP00 enclosure as standard, with an IP20 enclosure option for harsher environments. While ABB drives commonly support CE marking and safety standards, verify current documentation for region-specific certifications and SIL/industry approvals from ABB or your distributor to ensure full compliance for your project.
The ACS580-04 reduces maintenance through built‑in diagnostics, robust hardware, and a straightforward setup process, which lowers downtime and service costs. Energy savings from precise speed control and reduced mechanical wear contribute to a favorable return on investment, especially in applications with variable loads like pumps, fans, and conveyors in industrial facilities.
