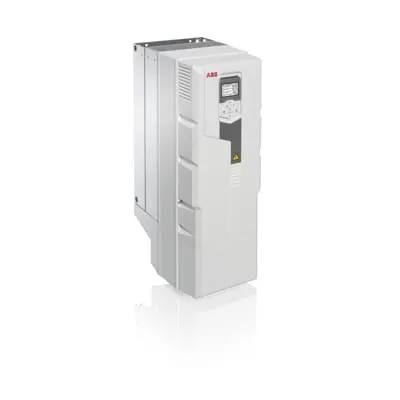

ABB ACS580-01-145A-4+0J400 Drive - IP21 Enclosure
Part Number: 3ABD00046022-D
Quick Summary
ABB ACS580-01-145A-4+0J400 is a LV AC general purpose wall-mounted drive that precisely controls compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. This addresses the common pain point of lengthy setups and complex wiring by offering plug-in readiness and built-in features that streamline commissioning and maintenance. The standard IP21 enclosure and optional IP55 and flange mounting configurations provide flexibility for diverse plant environments, while reliable performance supports consistent process control. By combining robust protection with straightforward configuration, this drive helps engineers meet uptime targets and drive energy efficiency across light industrial applications. Its compact footprint and integrated assistants support rapid deployment, reduced total cost of ownership, and scalable plant control.
Product Information
Extended Description
3ABD00046022-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Plug-in ready and wall-mounted design reduce installation time and hardware costs, enabling faster project delivery for compressors, pumps, and conveyors in manufacturing facilities. This accelerates time-to-value and minimizes field cabling complexity during retrofits or new builds. Application: light industry such as food & beverage, plastics, and textiles where rapid commissioning is crucial. Feature → Business Impact → Application: Built-in essential features and straightforward settings menu enable faster setup, simplified operation, and lower training requirements, improving maintenance efficiency and reducing operator errors in ongoing plant control. Application: general purpose variable torque and constant torque drives across mixed loads. Feature → Business Impact → Application: Rugged design with IP21 standard enclosure and IP55/flange options improves reliability in diverse environments, reducing unscheduled downtime and extending motor life in conveyors, mixers, and fans. Application: plants with varied ambient conditions. Feature → Business Impact → Application: Power, protection, and connectivity are integrated, lowering total cost of ownership and enabling plug-and-run installation, which is ideal for retrofits, upgrades, and multi-site rollouts. Application: OEMs and integrators scaling across multiple lines. Feature → Business Impact → Application: Compatibility with a wide range of light industry equipment ensures consistent control strategies and energy efficiency gains, supporting compliance with corporate sustainability targets. Application: system-wide optimization for factory floors.
Get a Quick Quote for a ABB 3ABD00046022-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046022-D?
Enquire Now
FAQs
Yes. The ACS580-01-145A-4+0J400 is designed as a wall-mounted LV AC drive with plug-in readiness, targeting general purpose motors up to 75 kW. It supports standard three-phase motors typically used in compressors, pumps, conveyors, and fans, offering straightforward integration with existing motor control cabinets and field wiring.
The drive provides a 75 kW power rating with a 145 A current capability. It ships in an IP21 enclosure as standard, with IP55 and flange mounting variants available to accommodate more demanding environments and installation layouts. These specs support reliable operation across light industrial applications with varied ambient conditions.
Absolutely. The ACS580-01-145A-4+0J400 is designed for both variable torque and constant torque loads, making it suitable for compressors, conveyors, and pumps. Its built-in features, easy setup, and robust construction help ensure stable speed control, smooth start/stop sequences, and improved process stability in factory lines.
This drive includes an IP21 standard enclosure and offers IP55 and flange mounting variants for harsher environments or tighter installation constraints. While IP ratings cover enclosure protection, these options expand installation flexibility across food & beverage, plastics, and material handling sectors, improving reliability and compliance with site-specific protection requirements.
The drive’s built-in features and straightforward setup minimize commissioning time and reduce the need for extra hardware, lowering upfront and maintenance costs. Its robust design contributes to lower downtime and consistent motor control, supporting energy efficiency targets and a faster return on investment through improved process reliability and reduced field service requirements.
