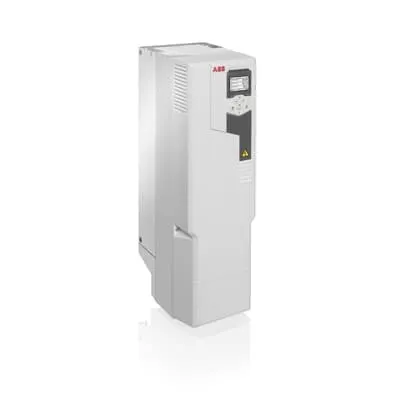

ABB ACS580-01 Drive 3ABD00046033-D - IP55 Mounting Options
Part Number: 3ABD00046033-D
Quick Summary
ABB ACS580-01 Drive provides LV AC control for wall-mounted applications like compressors, conveyors, and pumps. Engineers often struggle with lengthy setup and maintenance, but this drive streamlines those steps with built-in features and guided assistants. It offers a rugged IP21 standard enclosure with IP55 mounting options, delivering reliable operation in light-industrial environments. This combination reduces downtime and supports efficient plant control, while seamless compatibility with existing control architectures helps optimize energy use and overall throughput.
Product Information
Extended Description
3ABD00046033-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACS580-01 is plug-in ready, reducing installation time and hardware overhead, which translates to lower project costs and faster commissioning on new lines. Benefit: Accelerated start-up and simplified maintenance, thanks to a straightforward settings menu and setup assistants that minimize operator training. Application: Control of compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in food & beverage, plastic, textile, and material handling sectors. Feature → Business Impact → Application: Wall-mounted single-box drive saves panel space and eases retrofits in constrained environments, minimizing enclosure changes and wiring complexity. Benefit: Improved reliability in tight spaces with a compact footprint, enabling flexible plant layouts. Application: Food processing lines and packaging machinery where footprint and serviceability matter. Feature → Business Impact → Application: Built-in safety and standard IP21 enclosure with IP55 option provides robust protection in variable environments, reducing external hardware needs. Benefit: Lower hardware costs and enhanced uptime by withstanding everyday industrial conditions. Application: Light industries with temperature and dust exposure when mounted with IP55 options. Feature → Business Impact → Application: 55 kW, 106 A rating supports demanding torque and speed control for conveyors and pumps, delivering precise process control. Benefit: Energy management and consistent performance, enabling smoother operation and reduced energy spikes. Application: High-demand motor control in fans and pumps across manufacturing lines.
Get a Quick Quote for a ABB 3ABD00046033-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046033-D?
Enquire Now
FAQs
Begin with the manual to confirm the motor voltage class and wiring diagram, then mount the drive on a suitable panel space. Use the plug-in connections for power and motor leads, and configure communication with your PLC using the built-in setup assistants. Check that your control topology supports the ACS580-01’s drive algorithms and safety features for seamless integration.
Key specs include the 55 kW rated power and 106 A continuous current, which govern motor torque and speed control. Consider enclosure rating (IP21 standard with IP55 option), control accuracy, soft-start capability, and built-in fault protection. Ensure the supply voltage aligns with the drive’s class and verify compatibility with your motor type and load profile.
Yes. The ACS580-01 is designed for general-purpose LV drives used in compressors, conveyors, pumps, and similar equipment. Its plug-in readiness, guided configuration, and robust enclosure options support quick deployment in food processing lines, while the IP55 option helps withstand dust and cleaning regimes typical of that sector.
The drive is available with a standard IP21 enclosure and an IP55 mounting option, aligning with common industrial protection standards. For certification specifics such as regional safety markings, consult the ABB datasheet for the exact model variant and your project’s regulatory requirements.
ROI improves through reduced installation time, lower hardware costs, and fewer maintenance visits due to built‑in features and a robust design. The easy setup, long-lasting reliability, and compatibility with existing control systems minimize downtime, while energy-efficient motor control helps lower utility bills across pumps, fans, and conveyors.
