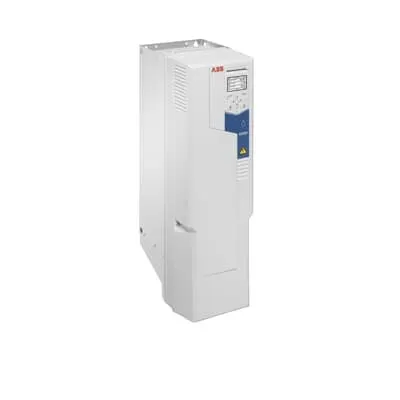

ABB 3ABD00046039-D LV AC wall-mounted drive - IP21 enclosure
Part Number: 3ABD00046039-D
Quick Summary
ABB 3ABD00046039-D LV AC wall-mounted drive for water and wastewater applications streamlines pump control and energy management. This compact unit is designed to reduce operating costs while preserving reliable flow in critical infrastructure. Operators often struggle with abrupt energy spikes, pump wear, and complicated control logic; this drive simplifies it with built-in pump application features and intuitive control interfaces. Key certifications and standards support smooth deployment: CE compliance, IP21 enclosure as standard, and optional IP55 or flange mounting for harsher environments. By combining sensorless flow calculation, multipump control, and energy visualization, this solution delivers measurable business value, including lower energy bills, extended pump life, and streamlined maintenance workflows.
Product Information
Extended Description
3ABD00046039-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Built-in pump application features deliver tangible business outcomes. Feature: sensorless flow calculation enables accurate flow control without external sensors, reducing maintenance and installation costs while improving process stability in water networks. Benefit: lower operating energy and reduced pump wear, leading to lower total cost of ownership in wastewater facilities. Application: suitable for multi-pump configurations in treatment plants where precise head management is essential. Feature: multipump control and level control support coordinated operation across multiple pumps, ensuring consistent performance and minimizing dry-run events. Benefit: improved reliability during variable demand, fewer shutdowns, and safer process control in pumping stations. Application: essential in municipal water supply and wastewater lift stations. Feature: soft pipe fill and quick ramps minimize hydraulic shocks during start-up, protecting piping and impellers. Benefit: reduced mechanical stress and extended equipment life. Application: critical for delicate piping networks and pump assemblies. Feature: dry run protection and impeller cleaning solution prevent pump damage and improve maintenance intervals. Benefit: lower unscheduled downtime and cleaner impellers in grit-prone environments. Application: key for aging infrastructure with aggressive fluids. Feature: built-in energy calculator visualizes potential energy savings from optimized pump control. Benefit: data-driven optimization supports ROI demonstrations for capital programs. Application: utility and industrial water markets requiring energy performance reporting. The combination of Hand-Off-Auto control, Drive Composer PC tool, and optional Bluetooth panel enhances deployment and remote management, supporting faster commissioning and ongoing device diagnostics. Application: field engineers can configure, monitor, and troubleshoot drives from the control room or on-site, reducing site visits and speeding incident response. Compatibility and installation advantages: compact wall-mounted footprint suits tight installations; standard IP21 enclosure with IP55 and flange mounting options expand deployment scenarios. This design supports retrofit projects in older facilities while maintaining compliance with industry norms. Industry context: water/wastewater pumping demands robust, adjustable control with clear energy reporting to justify modernization investments.
Get a Quick Quote for a ABB 3ABD00046039-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046039-D?
Enquire Now
FAQs
Install as a wall-mounted drive in an IP21 enclosure by default, with options for IP55 or flange mounting for harsher environments. Use the Hand-Off-Auto panel for commissioning, and connect to the Drive Composer PC tool for configuration and diagnostics. Follow ABB guidelines for wiring the motor, sensors, and cooling, and ensure proper protective devices are in place.
Key features include sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and an impeller-cleaning solution. These enable precise control, protect pumps from damage, reduce energy use, and simplify multi-pump operations in treatment plants.
The drive includes an integrated energy calculator that visualizes potential savings from optimized pump operation. By adjusting motor speed and sequencing pumps, utilities can reduce idle power consumption, lower peak demand, and extend equipment life, delivering a favorable ROI over the system’s lifecycle.
Standard IP21 enclosure is included, with optional IP55 and flange mounting units for challenging environments. This flexibility supports retrofits and new installations across municipal and industrial water/wastewater facilities while maintaining CE compliance.
Yes. The drive offers an optional Bluetooth control panel and is fully compatible with the Drive Composer PC tool for on-site and remote configuration, monitoring, and diagnostics, enabling faster commissioning and ongoing maintenance without frequent site visits.
