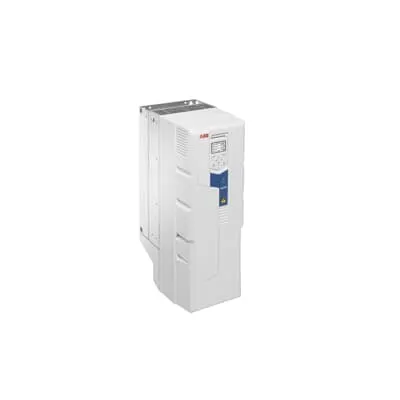

ABB 3ABD00046040-D LV AC Wall-Mounted Drive - IP21/IP55
Part Number: 3ABD00046040-D
Quick Summary
ABB LV AC wall-mounted drive for water and wastewater pumps optimizes energy and flow. Operators often struggle with energy waste, pump downtime from dry-run protection, and complex multi-pump setups. Key certifications and standards referenced for these drives include IP ratings (IP21 standard, IP55 variants) and typical CE conformity in global markets. With built-in energy calculator, sensorless flow control, and intuitive commissioning tools, this solution delivers measurable cost savings while ensuring reliable, compliant pump performance. This combination supports efficient water treatment and wastewater transfer operations, aligning with facilities aiming to reduce operating costs and environmental footprint.
Product Information
Extended Description
3ABD00046040-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: sensorless flow calculation and multipump control enable precise flow management without extra sensors, reducing installation time and cost. Business impact: lowers capital expenditure and ongoing maintenance while improving control accuracy; Application: municipal water pumping and industrial wastewater transfer. Feature: level control and dry run protection prevent over- and under-fill scenarios and protect pumps from damage; Business impact: reduces downtime, extends asset life, and minimizes unplanned service calls; Application: lift stations and treatment plants. Feature: soft pipe fill and quick ramps reduce water hammer and mechanical stress, improving system reliability and energy efficiency; Application: irrigation, transfer lines, and high-flow pumping networks. Feature: intuitive Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth control panel streamline commissioning, remote monitoring, and troubleshooting; Business impact: lowers commissioning time and supports proactive maintenance. Feature: built-in energy calculator and configurable pump applications help justify ROI through measurable energy savings; Application: fleet-wide pump optimization across water/wastewater operations. Enclosure and mounting flexibility: IP21 standard with IP55 and flange-mount variants; wall-mounted installation simplifies retrofits and minimizes control cabinet footprint; Business impact: easier integration with existing plant layouts and reduced enclosure costs.
Get a Quick Quote for a ABB 3ABD00046040-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046040-D?
Enquire Now
FAQs
For retrofit projects, the wall-mounted design simplifies space planning and reduces enclosure footprint. The standard IP21 enclosure supports indoor applications, while IP55 variants and flange-mount options broaden suitability for harsher environments. Verify mains supply (voltage class near 400 V AC for a 75 kW rating), available space for the Hand-Off-Auto panel, and necessary cables for motor, sensor, and communication interfaces to ensure seamless integration with existing PLCs or SCADA systems.
Sensorless flow calculation estimates flow using motor and process data, eliminating external flow meters where appropriate and reducing capital costs. Multipump control coordinates parallel pumps to match demand, avoiding overshoot and minimizing energy consumption. Together, these features enhance pump efficiency, improve process stability, and reduce energy bills in municipal pumping stations and wastewater transfer lines.
Yes. The ACQ580-01 family includes multipump control and level control functionalities, enabling coordinated operation across multiple pumps and automatic level-based sequencing. This is ideal for lifting stations, reservoir feed systems, and treatment plant processes where precise level management and coordinated pump action improve reliability, reduce cycling, and optimize energy use.
Project specifications should confirm IP rating requirements for the installation environment; IP21 is standard while IP55 options exist for harsher conditions. CE conformity is commonly expected for global markets, ensuring electrical safety and electromagnetic compatibility. Verify any regional regulatory requirements and ensure OEM documentation aligns with site QA standards and commissioning procedures.
ROI is driven by energy savings from optimized pump operation, reduced mechanical stress via soft-start and quick ramp features, and lower maintenance due to dry-run protection. The built-in energy calculator provides a transparent basis for savings calculations, while intuitive tools shorten commissioning and enable proactive maintenance planning, delivering faster payback in systems with variable demand and large pump fleets.
