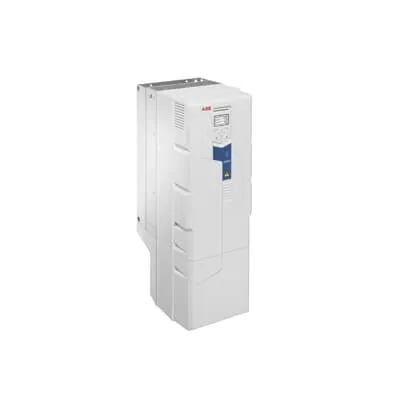

ABB 3ABD00046041-D LV AC wall-mounted drive - IP21
Part Number: 3ABD00046041-D
Quick Summary
ABB 3ABD00046041-D LV AC wall-mounted drive is designed to optimize water and wastewater pumping. A compact wall-mount profile reduces installation space and simplifies service in constrained plant rooms. The unit carries CE marking and standard IP21 protection, with IP55 and flange-mount options available for harsher environments, ensuring reliable operation in challenging facilities. Integrated sensorless flow calculation, multipump control, level control, and dry-run protection help maintain steady process conditions while protecting pumps. The drive also includes soft pipe fill, quick ramps, and an energy calculator to visualize savings. Together with Drive Composer, Hand-Off-Auto control, and optional Bluetooth control panel, it supports fast commissioning, robust monitoring, and long-term cost efficiency.
Product Information
Extended Description
3ABD00046041-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump optimization features including sensorless flow calculation, multipump control, and level control. Business Impact: Improves process stability and energy efficiency by precisely matching pump speed to demand, reducing waste and wear. Application: Water and wastewater pumping stations. Feature: Dry-run protection and soft ramp functions. Business Impact: Prevents pump damage and reduces hydraulic shock, extending equipment life and lowering maintenance costs. Application: All vertical pump installations with variable demand. Feature: Energy calculator and intuitive controls. Business Impact: Enables measurable energy savings and faster ROI, aiding budget approvals. Application: Utilities and industrial water systems seeking cost optimization. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth panel. Business Impact: Accelerates commissioning, simplifies troubleshooting, and enables remote diagnostics. Application: New installations and retrofits in constrained facilities. Feature: IP21 standard enclosure with IP55 and flange mounting options. Business Impact: Flexible installation for indoor plant rooms or harsh environments, improving reliability and reducing integration time. Application: On-wall installations in water/wastewater facilities with variable site conditions.
Get a Quick Quote for a ABB 3ABD00046041-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046041-D?
Enquire Now
FAQs
This LV AC wall-mounted drive is designed for straightforward integration in existing plants. It supports 3-phase supplies and connects to pumps via the ACQ580-01 family. Use Drive Composer for commissioning, ensure required clearances around a wall-mount installation, and consider IP55 flange options if the environment demands additional protection. Compatibility with Hand-Off-Auto panels enables seamless control handover.
Key specifications include a power rating of 90 kW, 169 A current, and low-voltage operation. The unit features sensorless flow calculation, multipump control, level control, soft pipe fill, and dry-run protection. It provides an intuitive control experience via Hand-Off-Auto and Drive Composer, with an energy calculator to quantify savings and ROI.
Yes. The drive includes multipump control and level management to handle multi-pump duty, ensuring smooth transitions, optimal flow, and reduced energy spikes. This makes it well-suited for wastewater pumping stations and treatment processes where demand varies and reliability is critical.
The device is CE compliant and offered with IP21 protection by default, with IP55 and flange-mount options available for harsher environments. These protections support compliant operation in standard European installations and more demanding plant configurations.
The built-in energy calculator provides visibility into energy savings, supporting a clear ROI case. Dry-run protection and soft-start features reduce pump wear and downtime, while Drive Composer and optional Bluetooth enable remote diagnostics and faster maintenance. Overall, the solution lowers operating costs and extends equipment life in water and wastewater facilities.
