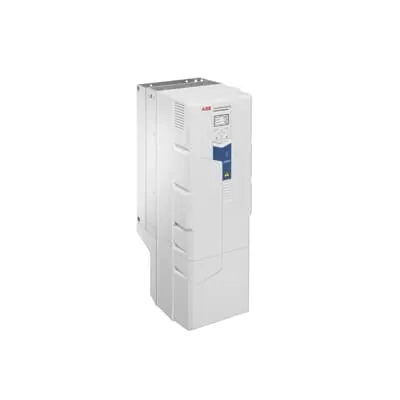

ABB 3ABD00046042-D AC Drive - IP21 Wall-Mount 110 kW/206 A
Part Number: 3ABD00046042-D
Quick Summary
ABB 3ABD00046042-D AC drive is a wall-mounted LV controller for water and wastewater pumps. It enables precise speed control and efficient flow in compact installations. The unit includes sensorless flow calculation, level control, dry-run protection, soft pipe fill, and quick ramps to extend pump life and reduce energy use. With Hand-Off-Auto operation, Drive Composer PC tool, and an optional Bluetooth panel, commissioning and field tuning are streamlined. Enclosures start with IP21 and options for IP55 and flange mounting provide CE-compliant control in diverse environments, delivering lower total cost of ownership and improved system reliability.
Product Information
Extended Description
3ABD00046042-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, and dry run protection. Benefit: Optimizes pump performance, reduces energy waste, and protects pumps in water and wastewater systems. Application: Municipal pumping stations and treatment facilities where reliability and efficiency matter. Feature: Quick ramps, sensorless control, and impeller cleaning solution. Benefit: Minimizes mechanical stress and maintenance cycles while extending pump life. Application: High-cycle pumping scenarios with variable demand. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Benefit: Accelerates commissioning, simplifies remote tuning, and improves on-site usability. Application: Field deployments and commissioning teams needing rapid setup. Feature: Built-in energy calculator and energy-saving visualization. Benefit: Quantifies savings, supports ROI tracking, and justifies energy projects. Application: Energy optimization projects in water/wastewater networks. Feature: IP21 standard enclosure with IP55 and flange mounting options. Benefit: Flexible installation across indoor and exposed environments, reducing installation time and enabling compliant configurations. Application: Wall-mounted drives in varied plant layouts and protection classes.
Get a Quick Quote for a ABB 3ABD00046042-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046042-D?
Enquire Now
FAQs
The 3ABD00046042-D is designed for wall mounting with an IP21 enclosure by default and available IP55/ flange variants. Use the Hand-Off-Auto panel and Drive Composer for quick configuration, ensure adequate clearance for wiring, and follow manufacturer torque specs for all connections to ensure reliable operation in water and wastewater environments.
Key specs include a power rating of 110 kW and a current rating of 206 A (ACQ580-01-206A-4+0J400). The drive is intended for LV applications in water and wastewater pumping and supports sensorless flow control, multipump control, level control, and protective features like dry-run protection.
Yes. It is specifically designed for water and wastewater pumping systems, offering features that improve efficiency, protect pumps from dry-run and overload, and support reliable operation in municipal and utility installations.
The drive ships with an IP21 enclosure as standard, with IP55 and flange mounting options available for harsher environments. It also supports CE-compliant controls; check local regulatory requirements for specific certifications in your region.
You can quantify energy savings with the built-in energy calculator, reduce maintenance with features like dry-run protection and sensorless flow control, and shorten commissioning time via Drive Composer and the optional Bluetooth panel, leading to a lower total cost of ownership.
