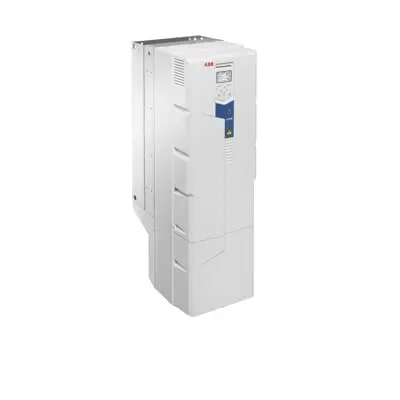

ABB 3ABD00046044-D AC Wall-Mounted Drive - IP21 Enclosure
Part Number: 3ABD00046044-D
Quick Summary
ABB 3ABD00046044-D AC wall-mounted drive is a compact LV drive that optimizes pump performance for water and wastewater applications. This solution addresses energy waste and equipment wear by delivering precise, sensor-based motor control. It supports IP21 enclosure, with IP55 and flange mounting options to fit diverse installations. Key features include a built-in energy calculator, intuitive Hand-Off-Auto control, and optional Bluetooth control panel, all aimed at reducing operating costs while improving system resilience. For engineers and procurement professionals, the result is simpler commissioning, better visibility into energy savings, and a clear path to compliant, sustainable pumping solutions.
Product Information
Extended Description
3ABD00046044-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation enables accurate pump performance without external flow meters. Business impact: lowers installation complexity and reduces capital cost while improving process visibility in water and wastewater plants. Application: municipal pumping stations seeking reliable flow control with minimal instrumentation. Feature: Multipump control coordinates multiple pumps to optimize duty cycling and throttling. Business impact: minimizes start/stop wear, reduces energy spikes, and extends pump life. Application: large wastewater facilities with variable demand. Feature: Level control and dry run protection safeguard pumps from running dry, preventing costly damage and unscheduled downtime. Application: lift stations and treatment plants where fluid levels vary. Feature: Soft pipe fill and quick ramps limit hydraulic surge, protecting piping and valves. Application: high-rise or long-pipeline installations with sensitive hydraulics. Feature: Built-in energy calculator visualizes savings, supporting budgeting and ROI analyses. Application: capital planning and lifecycle cost optimization. Feature: Hand-Off-Auto control panel with Drive Composer PC tool, plus optional Bluetooth panel, streamlines commissioning and maintenance. Application: field service and remote diagnostics for quick issue resolution. Feature: IP21 standard enclosure with IP55/flange options offers installation flexibility in harsh environments. Application: retrofit projects and new builds requiring adaptable mounting and protection.
Get a Quick Quote for a ABB 3ABD00046044-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046044-D?
Enquire Now
FAQs
To ensure seamless integration, verify the wall-mount suitability and available enclosure: standard IP21 with IP55 and flange mounting options. Confirm electrical connections match the 3ABD00046044-D model’s AC input and motor output specifications, and plan space for the Hand-Off-Auto panel or Drive Composer PC tool. Consider the drive’s footprint, cooling, and available Bluetooth control panel for remote diagnostics.
Key specs include a 160 kW (Pn) rating and 293 A current for pump applications, sensorless flow calculation for direct control without external sensors, and built-in dry run protection. These features reduce energy consumption, protect equipment, and enhance process reliability in water and wastewater pumping, especially under variable demand or variable head conditions.
Yes. The ACQ580-01 supports multipump control to coordinate multiple pumps, optimizing sequencing and minimizing duty cycle losses. This capability reduces energy spikes from simultaneous starts, lowers wear, and improves system resilience during peak demand or varying influent conditions common in wastewater facilities.
The model ships with an IP21 enclosure as standard, with IP55 and flange mounting units available as options. While CE and other regulatory markings are typically addressed in regional configurations, the IP-rated protection and wall-mount design offer installation flexibility suitable for municipal and industrial water applications.
Expect measurable ROI from energy savings enabled by advanced motor control, reduced pump wear due to dry run protection and smooth starts, and lower maintenance costs from integrated diagnostics. The built-in energy calculator and optional Drive Composer/Bluetooth tools streamline commissioning, monitoring, and service intervals, delivering faster time-to-value for water and wastewater deployments.
