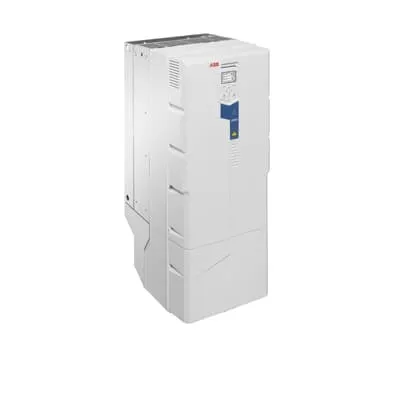

ABB ACQ580-01-363A-4+0J400 LV AC Drive - IP21
Part Number: 3ABD00046045-D
Quick Summary
ABB ACQ580-01-363A-4+0J400 LV AC wall-mounted drive is engineered to optimize pump performance in water and wastewater facilities. Many pumping systems struggle with energy waste, lengthy commissioning, and limited protection features in tight spaces. CE-compliant with IP21 enclosure, plus IP55 and flange mounting options, it offers reliable operation and expanded installation flexibility for challenging sites. Designed for utilities and industrial plants, it supports an integrated energy calculator and easy configuration via Drive Composer and Hand-Off-Auto control panel. Its compact footprint and clear diagnostics help shorten project timelines and reduce maintenance overhead, delivering measurable business value.
Product Information
Extended Description
3ABD00046045-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Sensorless flow calculation is engineered to optimize pump performance without extra sensors, delivering tangible energy savings and lower installation costs. By estimating flow from motor current and speed, the drive adapts to real-time loads, improving efficiency in municipal water and wastewater systems. This capability is especially valuable in variable-flow applications where traditional sensors are unreliable or costly.Multipump control and level management enable balanced, automatic pump operation, reducing cycling and preventing overflows. In treatment plants or pumping stations, this feature minimizes wear, extends equipment life, and simplifies control logic for operators while ensuring consistent process performance.Dry-run protection and safe startup guard pumps against dry or low-flow conditions, preventing costly damage and downtime. Combined with soft pipe fill and quick ramps, the solution minimizes water hammer and mechanical stress during acceleration, extending pump life and reducing maintenance intervals.An integrated energy calculator and intuitive interfaces—Hand-Off-Auto, Drive Composer, and optional Bluetooth control panel—enable fast commissioning, proactive diagnostics, and data-driven optimization. Utilities and contractors can quantify savings, streamline onboarding, and shorten project ROI cycles while maintaining robust control over critical pumping assets.The compact wall-mounted design with IP21 standard enclosure and optional IP55 or flange-mounted configurations simplifies retrofits and new installations in space-constrained facilities. This reduces installation time, simplifies compliance checks, and supports scalable pump control across municipal and industrial water networks.
Get a Quick Quote for a ABB 3ABD00046045-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046045-D?
Enquire Now
FAQs
Yes. The ACQ580-01-363A-4+0J400 supports standard ABB motor interfaces and works with Drive Composer for configuration. It also offers Hand-Off-Auto operation for reliable local control. When retrofitting, verify motor compatibility (Pn and current) and confirm wiring and fieldbus options match your plant’s control system.
Key specs include a power rating of 200 kW and a rated current of 363 A. The enclosure is IP21 by default, with IP55 and flange-mount options available. It is a low-voltage drive designed for three-phase power and pump applications in water and wastewater facilities.
Yes. It provides sensorless flow calculation, multipump control, level management, dry-run protection, and quick ramping, all of which are valuable for municipal wastewater pumping where reliability, protection, and efficiency are critical.
The unit is CE-compliant with a standard IP21 enclosure. IP55 enclosure variants and flange-mounting options are available to meet harsher environments and installation requirements, supporting compliant and rugged wastewater and water applications.
The built-in energy calculator enables rapid visibility of potential energy savings. Features like dry-run protection, sensorless control, and soft-start operations reduce wear and downtime, lowering maintenance costs. Easy commissioning via Drive Composer and the Hand-Off-Auto panel accelerates project timelines and enhances long-term plant reliability.
