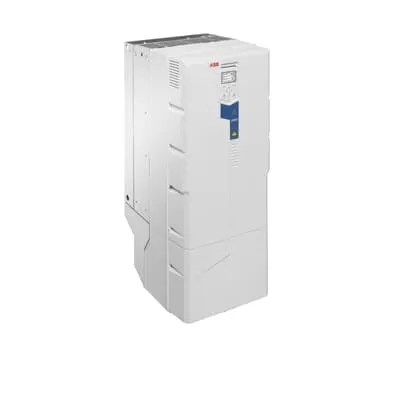

ABB 3ABD00046046-D LV AC wall-mounted drive - IP21 IP55
Part Number: 3ABD00046046-D
Quick Summary
ABB 3ABD00046046-D LV AC wall-mounted drive enables energy-efficient pump control for water and wastewater systems. Operators often struggle with sensorless flow inefficiencies, dry-running pumps, and the challenge of coordinating multiple pumps in aging infrastructure. This drive is CE certified, standard with an IP21 enclosure and IP55 options, built to withstand demanding environments. By merging built-in pump features with a user-friendly interface, the solution reduces downtime and maintenance cost while ensuring regulatory compliance. The included energy calculator, Drive Composer PC tool, and Bluetooth control panel support data-driven optimization and easy commissioning for utilities, OEMs, and service partners.
Product Information
Extended Description
3ABD00046046-D ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation, multipump control, level control, dry run protection, soft pipe fill, and an anti-impeller-clogging approach. Business Impact: Optimized pump performance, reduced energy consumption, minimized unscheduled downtime, and extended pump life. Application: Ideal for water and wastewater pumping stations needing precise flow management and preventative protection. Feature: Built-in energy calculator. Business Impact: Quantifies energy savings, supporting ROI calculations and utility-grade optimization. Application: Municipal and industrial pumping where energy use is a primary cost driver. Feature: Hand-Off-Auto control panel, Drive Composer PC tool, and optional Bluetooth control panel. Business Impact: Faster commissioning, easier remote monitoring, and reduced field labor. Application: New installs and retrofits across distributed pumping networks. Feature: Enclosure flexibility with IP21 standard and IP55 option, plus wall-mounted installation. Business Impact: Flexible deployment in constrained spaces and harsh environments, ensuring compliance and safer electrical installation. Application: Plant floors, cabinets, and remote sites requiring reliable protection and adaptable mounting. Feature: Quick ramps and dry-run protection. Business Impact: Smooth start-ups, reduced mechanical wear, and lower maintenance costs. Application: High-cycle pump systems and critical process applications in water utilities.
Get a Quick Quote for a ABB 3ABD00046046-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046046-D?
Enquire Now
FAQs
The 3ABD00046046-D is a wall-mounted LV AC drive designed for water and wastewater applications. It supports single or multi-pump configurations with built-in control features such as sensorless flow calculation, level control, and multipump control. It ships with a CE mark and standard IP21 enclosure, with IP55 options available, and integrates via the Hand-Off-Auto panel, Drive Composer PC tool, and optional Bluetooth control panel for streamlined commissioning.
Key specs include a nominal power of 200 kW and a current rating of 430 A. It provides sensorless flow calculation, dry-run protection, soft pipe fill, and quick ramps to optimize pump start/stop profiles. The device is designed for water and wastewater pumping, enabling energy-efficient operation while maintaining tight process control and protection features.
Yes. The ACQ580-01 variant supports multipump control and level management, allowing coordinated operation across multiple pumps. This reduces cross-pump cycling, improves system stability, and enables efficient duty cycling in plants with varying demand. The device’s robust protection features also help prevent dry runs and equipment wear in complex pumping trains.
The drive is CE certified for EU markets and ships with a standard IP21 enclosure, with IP55 flange-mount options available for harsher environments. These ratings ensure safe operation in damp or dusty plant areas, while CE compliance supports regulatory alignment and safe integration with other automation equipment.
The device delivers measurable ROI through energy savings from optimized pump operation and extended equipment life due to protections like dry-run and gentle ramping. Maintenance is simplified via Drive Composer for diagnostics and tuning, along with a Bluetooth panel option for remote monitoring. The combination reduces on-site visits and supports predictable OPEX in utilities and industrial facilities.
