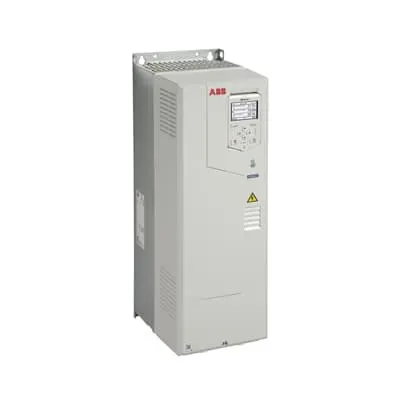

ABB 3ABD00046047-D Motors & Drives - HVAC IP21
Part Number: 3ABD00046047-D
Quick Summary
ABB 3ABD00046047-D is a LV AC wall-mounted HVAC drive that controls fans, pumps, and compressors. Engineers often struggle with lengthy startup, complex commissioning, and balancing energy use. The unit ships with a standard IP21 enclosure and IP55 options, and it is CE-compliant for European markets. HVAC-specific control panel and built-in assistants simplify startup and commissioning, delivering faster deployment and lower total cost of ownership. The device's Bluetooth capability option supports remote commissioning and monitoring, reducing on-site visits and accelerating diagnostics during seasonal changes. In practice, engineers report quicker fault isolation and predictable HVAC performance across building platforms.
Product Information
Extended Description
3ABD00046047-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control features are engineered to regulate fans, pumps, and compressors from a single drive. This integration reduces wiring, simplifies start-up, and shortens commissioning timelines, delivering faster project realization for commercial and industrial HVAC installs. Intuitive HVAC-specific control panel with primary settings menu and help assistants further reduce commissioning time, enabling facility teams to adapt controls quickly to changing system loads and occupancy patterns. Bluetooth capability, available as an option, supports remote commissioning and monitoring, cutting on-site visits and enabling quicker fault diagnostics. Enclosure options include a standard IP21 rating with IP55 and flange mounting units available, enhancing installation flexibility in plant rooms and mechanical spaces. The 30 kW, 62 A rating aligns with mid-range HVAC loads, ensuring reliable performance across air handling units, chillers, and packaged equipment. Compatibility with air handling units, pumps, and fans helps standardize drives across facilities, lowering spare parts and training costs while improving maintenance planning. Energy efficiency features and integrated controls contribute to lower operating costs and improved system response times, addressing common concerns about drive-derived energy penalties. Real-world feedback highlights faster startup, simplified maintenance routines, and more predictable HVAC system behavior after retrofits or expansions.
Get a Quick Quote for a ABB 3ABD00046047-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046047-D?
Enquire Now
FAQs
The drive ships with a standard IP21 enclosure suitable for wall mounting in HVAC equipment rooms. IP55 and flange mounting units are available to address higher protection needs and flexible mounting scenarios. This enables easy integration with air handlers, chillers, and other HVAC components while maintaining convenient access for service and maintenance.
The ACH580 variant supports a 30 kW power rating with a 62 A current requirement, suitable for medium-sized HVAC loads. It is designed for LV AC applications and integrates with standard HVAC electrical distributions, reducing wiring complexity and enabling compact control arrangements for rooftop units, air handling sections, and pumping loops.
Yes. The ACH580 HVAC drive is engineered to manage fans, pumps, and compressors found in air handling units, chillers, and similar HVAC equipment. Its HVAC-focused primary settings menu and built-in control logic optimize motor speed, pressure and flow, delivering stable operation, reduced energy use, and smoother system coordination.
The product ships in a standard IP21 enclosure and offers IP55 and flange mounting options to accommodate diverse installation environments. Wall mounting is standard, while flange options support installation in cabinets or on equipment frames. These choices help ensure safe operation in damp or dusty spaces and simplify retrofits or upgrades in existing facilities.
Expect faster commissioning reduces project labor costs, while built-in HVAC controls improve system efficiency and reduce energy consumption. Remote commissioning via Bluetooth (optional) lowers on-site service visits. Standardized controls across multiple HVAC loads simplify maintenance, reduce spare-part diversity, and improve uptime, delivering a favorable total cost of ownership in new installs and retrofits.
