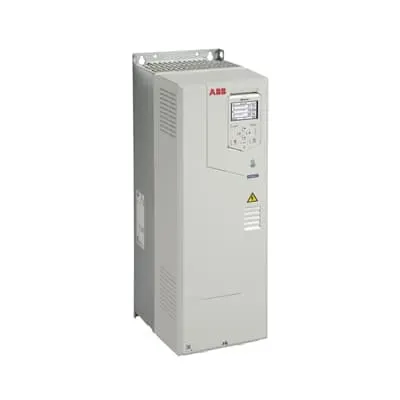

ABB ACH580-01-073A-4+0J400 LV AC wall-mounted drive - IP21
Part Number: 3ABD00046048-D
Quick Summary
The ACH580 HVAC drive controls HVAC fans, pumps, and compressors for reliable building climate systems. For installers and engineers, long commissioning times and complex wiring can stall projects and raise costs, but this drive streamlines startup. It's CE-compliant and available in an IP21 wall-mount, with IP55 and flange-mount options to meet broader installation requirements. Built-in HVAC control features and an intuitive settings menu simplify commissioning, while optional Bluetooth enables remote monitoring and support. This combination delivers faster project timelines, reduced on-site visits, and a lower total cost of ownership for HVAC systems. Designed for compatibility with HVAC fans, pumps, air handling units, and chillers, it supports scalable deployments in commercial and industrial settings.
Product Information
Extended Description
3ABD00046048-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control features with an HVAC-specific primary settings menu speed up startup and commissioning, diminishing field wiring and misconfiguration risk. This translates to measurable time savings during project sweeps and lower installation costs. It is well suited for controlling fans, pumps, and compressors in air-handling units, chillers, and packaged rooftop systems. By offering practical routines for common HVAC sequences, the ACH580 reduces programming errors and accelerates commissioning windows, delivering predictable performance from day one. Enclosure and mounting flexibility: the ACH580-01-073A-4+0J400 ships in an IP21 wall-mounted enclosure, with IP55 flange-mount units available for harsher environments. This improves installation flexibility, helps meet codes, and protects critical components in mechanical rooms. Builders and operators benefit from reduced cabling runs, simplified coordination with building management systems, and faster project handover. Bluetooth capability for remote commissioning and monitoring: optional Bluetooth reduces site visits and speeds troubleshooting; you can configure and monitor drive performance from a distance, which is especially valuable for multi-plant deployments. Energy efficiency and reliability: advanced motor control delivers smooth acceleration and ramp rates, reducing peak demand and energy use; built-in diagnostics and fault detection improve uptime and simplify maintenance. Compatibility and integration: the drive supports HVAC equipment such as fans, pumps, AHUs, and chillers; wall-mounted installation with IP55 option simplifies retrofits and new builds; the device integrates with existing building management systems and provides a straightforward path to scalable HVAC control.
Get a Quick Quote for a ABB 3ABD00046048-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046048-D?
Enquire Now
FAQs
The ACH580-01-073A-4+0J400 is designed for LV AC applications and can control fans, pumps and compressors in air handling units, chillers, and other HVAC gear. It supports on-wall mounting (IP21) with IP55 flange options, making retrofit and new-build installations flexible and scalable for various mechanical room layouts.
The drive delivers a 37 kW nominal rating with a 73 A current, designed for precise motor control and smooth ramping. With IP21 enclosure and optional IP55 mounting, it fits across diverse spaces. The integrated HVAC control features, along with Bluetooth commissioning, improve startup reliability and enable remote optimization of fan, pump, and compressor loads.
Ideal for fans, pumps, air handling units, and chillers in commercial and industrial HVAC systems, including rooftop units and data center cooling. Its wall-mounted form factor and HVAC-specific settings simplify integration with existing control schemes while maintaining stringent performance and energy efficiency targets.
The ACH580 is CE-conformant, with an IP21 wall-mounted enclosure by default and IP55 flange-mount options for more demanding environments. These certifications and ratings support compliance with common building and electrical standards while enabling flexible installation in mechanical rooms and restricted spaces.
ROI is driven by faster commissioning, reduced on-site visits via Bluetooth remote access, and lower energy consumption from optimized motor control. Built-in diagnostics improve uptime and simplify preventive maintenance, translating to lower lifecycle costs for HVAC systems across campuses, hospitals, offices, and manufacturing facilities.
