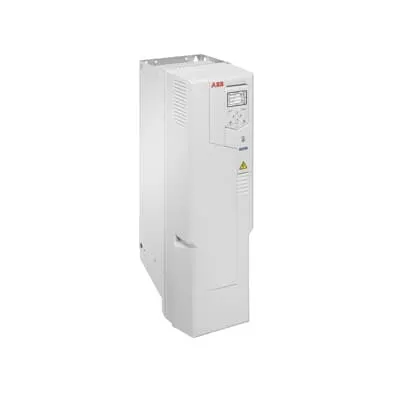

ABB ACH580-01-106A-4+0J400 HVAC Drive - IP21/IP55
Part Number: 3ABD00046050-D
Quick Summary
ACH580 HVAC drive is a LV AC wall-mounted controller for fans, pumps, and compressors in HVAC systems. Installers often battle lengthy commissioning, complex parameter setups, and unreliable performance under peak loads. It features an HVAC-focused startup menu and built-in energy-management features to simplify startup, tune, and ongoing operation. Standard IP21 enclosure with IP55 option and flange mounting support broaden installation choices for varying environments. With a 55 kW, 106 A rating, this drive is sized for mid-range HVAC applications while preserving efficiency and system reliability. Optional Bluetooth-capable versions enable remote commissioning and monitoring, reducing on-site visits and accelerating project timelines.
Product Information
Extended Description
3ABD00046050-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: HVAC-focused control functions are built into the ACH580 HVAC drive, enabling precise modulation of fans, pumps, and compressors. Business impact: This integration reduces wiring, speeds up commissioning, and delivers energy savings across HVAC systems. Application: Particularly effective on air handling units and chiller plants where reliability and response time matter. Feature: HVAC-focused startup menu with help assistants and intuitive primary settings. Business impact: Speeds startup, reduces commissioning errors, and ensures consistent operation. Application: New installations and retrofit projects in mid-sized commercial buildings. Feature: Standard IP21 enclosure with IP55 option and flange mounting. Business impact: Provides installation flexibility and robust protection in variable environments, lowering enclosure-related redesign costs. Application: Wall-mounted setups in mechanical rooms, rooftops, and ducted systems. Feature: Rated 55 kW and 106 A for HVAC loads. Business impact: Adequate headroom for common HVAC fans and pumps while maintaining efficient performance. Application: Mid-range AHUs, chiller loops, and pumps. Feature: Optional Bluetooth capability for remote commissioning and monitoring. Business impact: Enables off-site setup, reduces on-site visits, and shortens handover timelines. Application: Remote projects and distributed facilities. Feature: Integrated energy management and diagnostics improve fault detection and maintenance planning. Business impact: Minimizes downtime and helps meet service-level agreements. Application: Facility management and energy-optimized buildings.
Get a Quick Quote for a ABB 3ABD00046050-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046050-D?
Enquire Now
FAQs
The ACH580-01-106A-4+0J400 is designed for wall mounting with a standard IP21 enclosure. For harsher environments or tighter spaces, IP55-rated variants and flange mounting units are available. Ensure proper heat dissipation and clearance around the enclosure, and verify electrical compatibility with your LV AC supply and HVAC loads.
This drive is rated for 55 kW and 106 A in a LV AC three-phase configuration. It includes HVAC-focused control features, an HVAC-specific startup menu, and optional Bluetooth for remote commissioning and monitoring. The combination supports energy-efficient operation, reliable control, and streamlined setup for HVAC equipment.
Yes. The ACH580-01-106A-4+0J400 excels in air handling units, chillers, and packaged rooftop systems. Its built-in HVAC control features, compact wall-mounted form factor, and scalable power rating make it a practical choice for mid-size HVAC applications needing precise speed control and responsive operation.
The standard configuration uses an IP21 enclosure, with IP55 as an available option to address more demanding environments. While the data focuses on IP ratings and HVAC-focused features, it aligns with typical HVAC control standards and IEC-based design principles that ABB leverages across the ACH580 family.
Integrating HVAC-specific features and a guided startup menu reduces installation time and commissioning effort, lowering project labor costs. Remote commissioning via Bluetooth minimizes on-site visits, while energy-management capabilities contribute to ongoing energy savings and reduced operating expenses over the drive’s life cycle.
