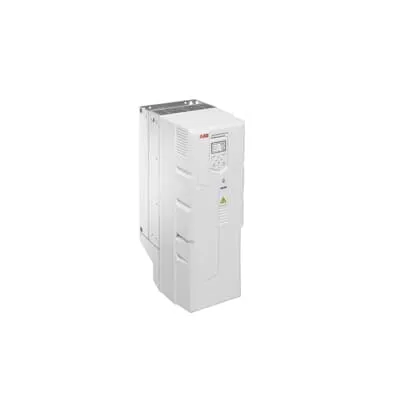

ABB ACH580-01-145A-4+0J400 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00046051-D
Quick Summary
The ACH580 HVAC drive is a LV AC wall-mounted controller that optimizes HVAC fans, pumps and chillers. Installing and commissioning can be time-consuming, but built-in HVAC menus and help assistants shorten startup and reduce commissioning risks. CE-compliant safety standards with an IP21 enclosure, plus optional IP55 and flange-mount variants, support safe, flexible installation in varied facilities. This solution delivers business value through energy efficiency and straightforward integration with building management systems and broader industrial automation workflows.
Product Information
Extended Description
3ABD00046051-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps and compressors → Business Impact: Streamlined operation and energy efficiency across HVAC systems → Application: Air handling units, rooftop units, and chillers improve load matching and reduce energy use. Feature: HVAC-specific control panel with primary settings menu and help assistants → Business Impact: Faster commissioning, lower start-up risk, and reduced need for specialized programming → Application: On-site start-up of HVAC drives in new or retrofit projects. Feature: Optional Bluetooth capability for remote commissioning and monitoring → Business Impact: Accelerated setup and easier ongoing performance optimization without multiple site visits → Application: Large installations such as multiple chillers or AHUs managed from a central office. Feature: Rugged IP21 enclosure with on-wall mounting (IP55 and flange options available) → Business Impact: Flexible placement and robust protection in varied environments → Application: Plant rooms, rooftops, and mechanical spaces requiring adaptable mounting. Feature: Energy-efficient operation with smooth control of speed and torque → Business Impact: Reduced energy consumption, lower operating costs, and improved system stability → Application: Continuous control of fan and pump speeds in HVAC loops. Feature: Compatibility with standard motor controls and building management interfaces → Business Impact: Easy integration and future-proof upgrades with minimal downtime → Application: Retrofit projects and modernization of existing plant infrastructure.
Get a Quick Quote for a ABB 3ABD00046051-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046051-D?
Enquire Now
FAQs
The ACH580-01-145A-4+0J400 is a LV AC wall-mounted drive designed to control fans, pumps, and compressors in HVAC systems, including air-handling units and chillers. It integrates with standard ABB motor controls and supports common fieldbus interfaces, enabling straightforward replacement of legacy drives without major rewiring.
The ACH580-01-145A-4+0J400 is delivered in an IP21-rated enclosure suitable for wall mounting, simplifying placement in service corridors or plant rooms. For harsher environments, IP55 and flange-mount options are available. Ensure proper access, adequate ventilation, and compliance with local electrical codes during mounting and wiring.
Expect smoother startup, reduced energy consumption, and precise speed control for fans, pumps, and compressors. Built-in HVAC-specific settings streamline commissioning, while integrated help assistants minimize tuning errors. The result is improved system stability, lower operating costs, and easier compliance with energy-saving targets.
Yes, the ACH580-01-145A-4+0J400 offers optional Bluetooth capability for remote commissioning and monitoring, enabling installers and operators to configure, troubleshoot, and adjust parameters from a distance. This reduces on-site visits, accelerates commissioning, and supports ongoing performance optimization across multiple chillers and AHUs.
By combining energy-efficient operation, faster installation, and simplified maintenance, the ACH580-01-145A-4+0J400 provides a compelling payback in HVAC projects. Long-term reliability and ABB support minimize downtime, while IP-rated variants and modular mounting support future upgrades without major renovations.
