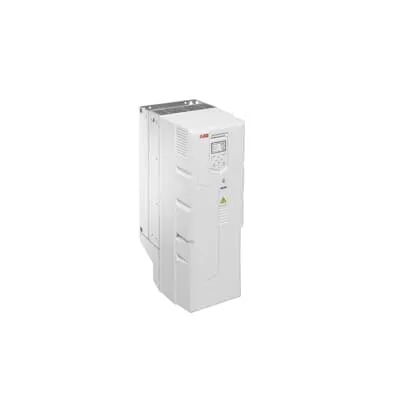

ABB ACH580-01-169A-4+0J400 Wall-Mounted HVAC Drive - IP21
Part Number: 3ABD00046052-D
Quick Summary
ABB ACH580-01-169A-4+0J400 is a LV AC wall-mounted drive for HVAC systems. A common challenge is lengthy wiring and troubleshooting during startup. The ACH580-01 streamlines commissioning with an HVAC-specific control panel and built-in help assistants. Its standard IP21 enclosure with optional IP55 and Bluetooth remote capabilities support safe, flexible operation. This combination drives energy efficiency, reduces maintenance cost, and accelerates project timelines for HVAC stakeholders. Designed for life-cycle efficiency, the drive supports fans, pumps, compressors, AHUs, and chillers. It reduces manual wiring by integrating motor control, protection, and energy management in a single cabinet. End users benefit from faster onboarding, improved system reliability, and a shorter path to regulatory compliance.
Product Information
Extended Description
3ABD00046052-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Built-in HVAC control features: The ACH580-01 embeds fan, pump, and compressor control logic to deliver smooth, energy-efficient operation across HVAC loads. This consolidation reduces external hardware and wiring, cutting installation time and potential wiring errors on site. In applications from air-handling units to chillers, the drive provides consistent performance while simplifying maintenance. Intuitive HVAC-specific settings and commissioning assistants: The drive includes a purpose-built primary settings menu with help assistants that guide startups, reducing commissioning time and the risk of misconfiguration. This translates to faster project ramp-up and fewer on-site service calls, even for technicians new to variable-frequency drives. Optional Bluetooth for remote commissioning and monitoring: Bluetooth enables off-site setup and diagnostics, lowering site visits and enabling proactive performance monitoring. This capability is particularly valuable for multi-site deployments and continuous commissioning, delivering faster ROI. Rugged enclosure options and installation flexibility: The ACH580-01 uses an IP21 enclosure for standard wall mounting, with IP55 and flange mounting units available to suit harsher environments or constrained spaces. Wall-mounted installation saves panel footprint and simplifies retrofits in mechanical rooms. Energy efficiency and system compatibility: Built-in energy-management features reduce energy consumption in HVAC operation, delivering measurable lifecycle savings. The drive is compatible with fans, pumps, compressors, AHUs, and chillers, and it integrates smoothly with ABB’s broader motor-control ecosystem. Reliability, diagnostics, and serviceability: Integrated diagnostics and a user-friendly interface help maintain uptime in mission-critical HVAC applications, lowering maintenance costs and improving system availability.
Get a Quick Quote for a ABB 3ABD00046052-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046052-D?
Enquire Now
FAQs
The ACH580-01-169A-4+0J400 is designed for LV AC HVAC applications and supports wall-mounted installation with an IP21 enclosure. It integrates motor control for fans, pumps, and compressors, reducing the need for external controllers. Optional IP55 mounting and compatible wiring schemes simplify retrofits and new-build deployments while enabling straightforward commissioning and serviceability.
Key specs include a 90 kW output rating and 169 A current, suitable for mid to large HVAC fans, pumps, and compressors. It features HVAC-focused startup controls, an intuitive primary settings menu, and Bluetooth for remote commissioning. The standard IP21 enclosure offers basic protection, with IP55 options available for tougher environments.
Yes. The ACH580-01 is designed for HVAC loads such as air handling units, chillers, pumps, and compressors. Its HVAC-specific control logic supports smooth airflow, efficient pump operation, and compressor regulation, delivering energy savings and improved system stability in both new installations and retrofits.
The drive comes with an IP21 enclosure by default and offers IP55 as an option, aligning with common industrial safety and environmental protection standards for wall-mounted equipment. While CE/UL marks are typically present on ABB drives, this specification highlights IP ratings and enclosure options as the primary certifications for this model.
The ACH580-01-169A-4+0J400 reduces installation time, lowers wiring complexity, and enables energy-efficient operation, contributing to faster ROI. Remote commissioning via Bluetooth minimizes on-site visits, while integrated diagnostics support proactive maintenance, reducing downtime and extending equipment life for HVAC systems.
