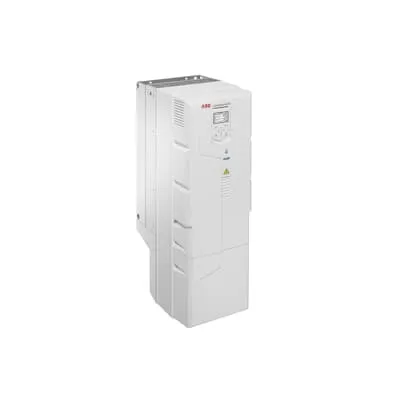

ABB ACH580-01-206A-4+0J400 HVAC Drive - IP21 Wall
Part Number: 3ABD00046053-D
Quick Summary
The ACH580 HVAC drive provides precise control for fans, pumps, and compressors in HVAC systems. Many installations struggle with lengthy commissioning times and complex wiring, but this drive simplifies startup with an HVAC-specific primary settings menu and help assistants. Key protections include IP21 standard enclosure, with IP55 and flange-mount options available for harsher environments, ensuring reliable operation in a range of installations. Bluetooth capability can be enabled for remote commissioning and monitoring, reducing on-site visits. By consolidating control, monitoring, and safety features in one device, it delivers energy-efficient operation, faster project timelines, and lower total cost of ownership for building services and industrial HVAC applications.
Product Information
Extended Description
3ABD00046053-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC controls enable direct management of fans, pumps, and compressors from a single device. Business Impact: Reduces wiring, panel footprint, and installation time while consolidating troubleshooting and maintenance in one interface. Application: Ideal for air handling units, air handling systems, and cooling loops where synchronized operation lowers energy use. Feature: HVAC-specific primary settings menu and help assistants simplify startup and commissioning. Business Impact: Shortens commissioning cycles and minimizes startup errors, accelerating project schedules. Application: Useful during plant retrofits and new-build HVAC installations where fast, reliable go-live is critical. Feature: Optional Bluetooth capability for remote commissioning and monitoring. Business Impact: Enables off-site configuration and diagnostics, lowering on-site labor costs and downtime. Application: Effective for remote facilities, rooftop units, and distributed HVAC networks requiring quick access to drive parameters. Feature: Protective enclosure options IP21 standard with IP55 and flange mounting available. Business Impact: Provides installation flexibility across control rooms and harsh environments, improving reliability and labor efficiency during mounting and service. Application: Wall-mounted installations in compact mechanical rooms or duct halls, plus adaptable mounting for varied layouts. Feature: Energy-efficient operation with integrated control for fans, pumps, and compressors. Business Impact: Delivers measurable energy savings and reduced total cost of ownership through optimized speed control and reduced service intervals. Application: Useful for chillers, AHUs, and pump-only loops where variable speed reduces utility load and operational cost.
Get a Quick Quote for a ABB 3ABD00046053-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046053-D?
Enquire Now
FAQs
The ACH580-01-206A-4+0J400 is designed for LV AC HVAC applications and supports three-phase input with direct control of fans, pumps, and compressors. Its wall-mounted IP21 enclosure and optional IP55 or flange-mount configurations provide mounting flexibility in control rooms or duct spaces. For retrofit projects, ensure the motor power and current ratings align with the drive's 110 kW/206 A capability, and plan for Bluetooth-enabled commissioning if remote access is desired.
This model is rated at 110 kW with a maximum current of 206 A, designed to regulate fans, pumps, and compressors with smooth start/stop control. It includes HVAC-focused control menus and built-in features that support energy efficiency, delayed start options, and acceleration/deceleration profiles. For demanding loads like chiller packs, the drive maintains stable operation and reduces electrical stress on motors.
Yes. The ACH580-01-206A-4+0J400 is specifically built for HVAC applications, including air handling units, chillers, and rooftop units. Its HVAC-centric settings, compact wall-mount form factor, and optional remote Bluetooth capability make it ideal for coordinating multiple units and ensuring synchronized, energy-efficient operation across complex HVAC systems.
The standard ACH580 comes with an IP21 enclosure, suitable for typical indoor installations, while IP55 and flange-mount options are available for harsher environments or where additional protection is needed. These enclosure choices enhance reliability in mechanical rooms and around ductwork. Bluetooth is optional for remote access, and ABB’s motors and drives typically conform to industry CE standards, though please confirm current certifications with ABB for your project.
The ACH580 drives faster project timelines through simplified startup via HVAC-specific menus, reducing commissioning labor and wiring complexity. Energy-efficient motor control lowers utility costs over the equipment life, while remote Bluetooth access minimizes on-site service visits. Together, these factors shorten payback periods and lower maintenance overhead for facilities with distributed HVAC assets.
