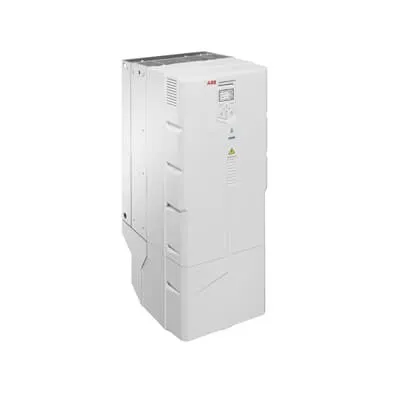

ABB ACH580-01-363A-4+0J400 HVAC Drive - IP21 Enclosure
Part Number: 3ABD00046056-D
Quick Summary
ABB ACH580-01-363A-4+0J400 HVAC drive precisely controls fans, pumps and compressors in HVAC systems. Engineers often battle long startup times and complex commissioning when integrating drives with building management systems. CE certification and IP21 enclosure (with optional IP55 and flange mounting) provide industrial reliability in variable environments. Built-in HVAC-centric controls and Bluetooth remote capability help speed commissioning and optimize energy use, delivering faster projects and lower operating costs.
Product Information
Extended Description
3ABD00046056-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in HVAC-specific control panel and primary settings menu. Business impact: Accelerates startup, reduces commissioning time, and minimizes configuration errors, enabling faster deployment across commercial buildings. Application: Ideal for air handling units, rooftop units, and packaged chillers where HVAC-specific logic is essential. Feature: Integrated control for fans, pumps and compressors. Business impact: Optimizes duty cycle and reduces energy consumption by providing coordinated control of multiple loads. Application: Suitable for central plants and AHU systems demanding synchronized operation. Feature: Wall-mounted IP21 enclosure with optional IP55 and flange mounting. Business impact: Flexible installation across indoor zones and harsh environments without compromising accessibility or serviceability. Application: Retrofit projects and new builds in mechanical rooms or service corridors. Feature: Bluetooth capability for commissioning and monitoring. Business impact: Enables remote setup, reduces site visits, and improves lifecycle data collection. Application: Field startups, maintenance windows, and remote diagnostics for HVAC fleets. Feature: Fast, installer-friendly startup with HVAC-oriented settings. Business impact: Shortens time-to-operational readiness, lowers total cost of ownership, and supports consistent performance across units. Application: Facility managers seeking predictable performance and rapid ROI.
Get a Quick Quote for a ABB 3ABD00046056-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046056-D?
Enquire Now
FAQs
Yes. The unit is designed for wall-mounted installation with an IP21 enclosure and supports HVAC-specific control for fans, pumps and compressors. Optional IP55 and flange mounting expand placement flexibility, while Bluetooth enables remote setup. Ensure proper electrical clearance and adherence to local codes during mounting in mechanical rooms or service corridors.
Key specs include a power rating of 200 kW and a current rating of 363 A (Pn 200 kW, 363 A). The drive is CE certified and ships in an IP21 enclosure, with optional IP55 and flange mounting for more demanding environments. Bluetooth provides remote commissioning and monitoring capabilities to reduce on-site visits.
Absolutely. The ACH580-01-363A-4+0J400 is engineered for HVAC applications, delivering coordinated control of fans, pumps and compressors. Its HVAC-specific control panel simplifies setup for air handling units, chillers, and related equipment, improving efficiency and reducing startup time while supporting integration with building management systems.
The drive provides CE certification and comes with an IP21 enclosure by default, with optional IP55 and flange mounting units available for tougher environments. These certifications and protections help ensure compliance, reliability, and safe operation in commercial and light industrial HVAC installations.
Owners benefit from reduced commissioning time thanks to HVAC-focused controls, energy efficiency from coordinated load control, and remote monitoring via Bluetooth. The rugged IP21/IP55 options and wall-mount design simplify installation and maintenance, delivering predictable performance and lower total cost of ownership over the system’s lifespan.
