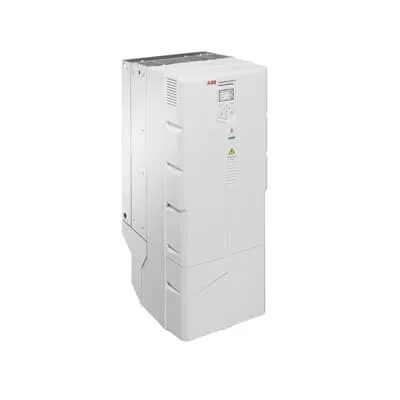

ABB ACH580-01-430A-4+0J400 HVAC Drive Wall-Mounted - IP21
Part Number: 3ABD00046057-D
Quick Summary
ACH580 HVAC drive is a wall-mounted LV controller that powers fans, pumps and compressors in building HVAC systems. Installers often face lengthy commissioning and complex parameter setups that slow project timelines. With CE conformity and IP21 protection, the drive is designed for reliable indoor operation, and optional IP55 and flange-mounting units expand installation flexibility in challenging environments. The built-in control features streamline startup and monitoring, while Bluetooth capability offers remote commissioning and diagnostics, delivering faster deployment and measurable energy savings for building services and mechanical contractors.
Product Information
Extended Description
3ABD00046057-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in an IP21 enclosure and can be installed on the wall as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in HVAC control accelerates energy-efficient operation by coordinating fans, pumps and compressors within a single drive. This reduces external controllers and simplifies wiring for air-handling units and chillers, delivering smoother start-up and reliable process control. Feature → Business Impact → Application: The intuitive control panel with an HVAC-specific primary settings menu and help assistants shortens commissioning time and minimizes setup errors. This is especially valuable on retrofit projects or sites with limited commissioning windows, enabling technicians to dial in parameters quickly for air handling units and rooftop units. Feature → Business Impact → Application: Optional Bluetooth capability enables remote commissioning and monitoring, reducing on-site visits and enabling off-site diagnostics. Ideal for large facilities or remote installations, this supports ongoing performance optimization of AHUs and chillers. Feature → Business Impact → Application: IP21 wall-mounted enclosure with optional IP55 and flange mounting units provides installation flexibility for varied environments and mounting constraints. This reduces hardware compromises and supports compliant installation in clean rooms or mechanical rooms. Feature → Business Impact → Application: Compact footprint simplifies integration with existing equipment and reduces cabinet space, while broad compatibility with HVAC equipment—fans, pumps, compressors—ensures a single drive can serve multiple load types across AHUs and chillers.
Get a Quick Quote for a ABB 3ABD00046057-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046057-D?
Enquire Now
FAQs
Typical installation involves mounting the unit on a clean, indoor wall with adequate ventilation. Ensure IP21 protection is maintained, plan for the 430 A current rating, and verify compatibility with connected fans, pumps or compressors. If environmental conditions require it, consider IP55-flange mounting options. Use the HVAC-specific settings menu to simplify startup and perform remote commissioning if Bluetooth is available.
The drive supports a power rating (Pn) of 200 kW and continuous current of 430 A. It is designed for LV AC operation to control HVAC equipment such as fans, pumps and compressors. The IP21 indoor enclosure and optional IP55 configuration provide installation flexibility, while built-in HVAC control features enable efficient, coordinated operation.
Yes. The ACH580 is designed for HVAC duty and is particularly suited for air handling units, rooftop units, chillers and similar equipment. Its built-in HVAC control features simplify coordination of multiple load types, and the intuitive interface accelerates commissioning and ongoing optimization in commercial building environments.
Key certifications include CE conformity for safety and compliance. Protection is IP21 for standard wall-mount installation, with IP55 and flange-mounting options available for more challenging environments. Bluetooth capability is optional for remote commissioning and monitoring.
By integrating HVAC controls into a single drive, the ACH580 reduces wiring complexity and commissioning time, cutting installation costs and project risk. Energy-efficient speed control lowers operating energy use, and remote monitoring minimizes on-site maintenance. Over the project lifecycle, these factors contribute to a shorter payback period and lower total cost of ownership.
