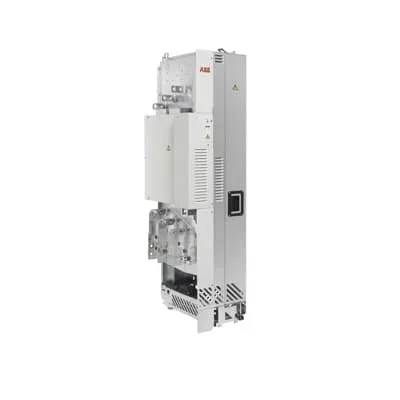

ABB ACH580-04-505A-4 LV AC drive - IP00/IP20
Part Number: 3ABD00046068-D
Quick Summary
ACH580 HVAC drive is a variable-speed control for HVAC systems, optimizing fans, pumps, and compressors. This reduces energy waste and simplifies commissioning in demanding facilities. The unit offers IP00 enclosure as standard for cabinet installations, with IP20 available for more exposed or laterally accessible setups, and it can be CE-compliant to support EU projects. Built-in HVAC-specific settings and an intuitive control panel accelerate startup, while optional Bluetooth enables remote commissioning and monitoring, improving maintenance planning and system visibility. For engineers and procurement teams, this combination translates to faster deployment, predictable performance, and long-term operating cost savings.
Product Information
Extended Description
3ABD00046068-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature: HVAC-specific built-in control logic → Business Impact: Simplifies startup, improves accuracy, and reduces energy consumption → Application: Controls fans, pumps, and compressors in air handling units and chillers. Feature: 250 kW, 505 A rating → Business Impact: Handles large HVAC loads with reliable torque and speed control → Application: Large AHUs and high-capacity cooling systems. Feature: IP00 standard enclosure with IP20 option → Business Impact: Flexible cabinet installation and protection tailored to installation environment → Application: Control cabinets in plant rooms or service corridors. Feature: HVAC primary settings menu with help assistants → Business Impact: Shortens commissioning time and reduces training needs → Application: New builds and retrofits. Feature: Optional Bluetooth capability → Business Impact: Remote commissioning and monitoring cuts on-site visits and accelerates fault diagnosis → Application: Remote sites and maintenance windows. Feature: Intuitive control panel and diagnostics → Business Impact: Lower risk of misconfiguration and improved troubleshooting → Application: Daily operation and service readiness.
Get a Quick Quote for a ABB 3ABD00046068-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046068-D?
Enquire Now
FAQs
The ACH580-04-505A-4 is designed for HVAC applications such as fans, pumps, compressors, air handling units, and chillers. With a 250 kW rating and 505 A capability, it provides precise speed control for large HVAC loads, enabling energy efficiency and smoother system operation in commercial and industrial plants.
By delivering variable-speed control tailored to HVAC loads, the ACH580-04-505A-4 minimizes fan and pump energy use during part-load conditions. Its HVAC-optimized settings reduce startup inrush and optimize motor operation, helping facilities meet energy performance targets while maintaining comfortable environmental conditions.
The drive supports cabinet installations with IP00 as standard and IP20 as an option, offering installation flexibility in different control environments. It is built for HVAC equipment such as AHUs, chillers, fans, and pumps, and its intuitive control panel speeds up commissioning. Optional Bluetooth enables remote setup and monitoring for hard-to-reach equipment.
The ACH580-04-505A-4 family features IP-rated enclosures (IP00 standard, IP20 option) for cabinet and panel installations. It is CE-compliant to support European market requirements and standard HVAC control practices, ensuring reliable operation in regulated environments with built-in safety and reliability features.
Expect a faster return on investment from reduced energy consumption and shorter commissioning times. The drive’s HVAC-focused controls simplify maintenance, while optional Bluetooth enables remote diagnostics and service planning, reducing on-site visits and downtime for critical HVAC equipment.
