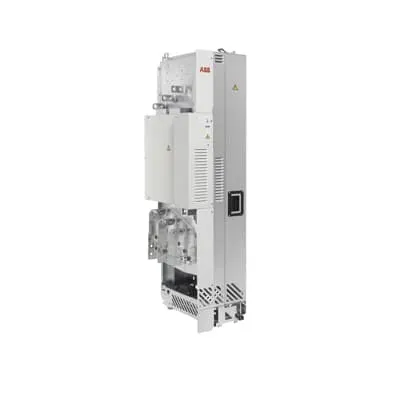

ABB ACH580 HVAC Drive Module - IP00/IP20 Enclosure
Part Number: 3ABD00046069-D
Quick Summary
The ABB ACH580 HVAC drive module optimizes HVAC system control for fans, pumps and compressors in commercial and industrial buildings. This delivers more reliable operation while reducing commissioning time and start-up complexity. The drive supports enclosure IP00 as standard with an IP20 option, and is designed to meet typical industry requirements for air handling units and chillers. By aligning built-in HVAC-specific menus with intuitive setup, installers and operators gain faster commissioning, easier fault diagnosis, and predictable performance. In addition, Bluetooth-enabled remote commissioning and monitoring add flexibility for service teams and building managers, enabling proactive maintenance and energy-saving opportunities across the facility.
Product Information
Extended Description
3ABD00046069-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature: HVAC-focused control panel with a dedicated primary settings menu and help assistants → Business Impact: Accelerates startup, reduces operator error, and shortens training cycles for maintenance staff → Application: Ideal for AHUs, chillers, and packaged rooftop units. Feature: Built-in drive logic tailored to fans, pumps and compressors → Business Impact: Improves process stability and energy efficiency, lowering lifecycle costs and peak demand charges → Application: Central plants and BAS-integrated HVAC systems. Feature: Bluetooth capability for commissioning and monitoring from a distance → Business Impact: Frees field technicians from frequent site visits, enabling rapid issue resolution and optimized maintenance windows → Application: Remote sites and multi-building campuses. Feature: IP00 standard enclosure with IP20 option → Business Impact: Flexible installation in cabinet spaces, with upgraded protection for harsher environments → Application: Mechanical rooms and equipment closets requiring configurable enclosures. Feature: High-capacity rating 315 kW, 585 A supporting heavy HVAC loads → Business Impact: Handles large fans, pumps and compressors with reliable torque and speed control, reducing wear and energy use → Application: Large HVAC installations such as air-handling units and district cooling segments. Feature: Integrated HVAC-specific controls for compressors and fans → Business Impact: Maintains precise system balance, improves indoor air quality, and reduces cycling losses → Application: Chiller plants and variable-air-volume systems.
Get a Quick Quote for a ABB 3ABD00046069-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046069-D?
Enquire Now
FAQs
The ACH580 module is designed for cabinet-based installations with standard IP00 enclosure and an IP20 option, making it suitable for a wide range of building HVAC configurations including AHUs, chillers and rooftop units. Its HVAC-specific menus streamline integration with common BAS platforms and subsystem controllers, reducing configuration time and ensuring consistent control behavior across equipment.
This model corresponds to ACH580-04-585A-4, delivering up to 315 kW of power with a 585 A current rating. It features an HVAC-focused control set, Bluetooth optional capability for remote commissioning, and standard IP00 enclosure with an IP20 option for protected installation, suitable for large-scale fans, pumps and compressors.
Yes. The ACH580 HVAC drive module offers optional Bluetooth capability, enabling commissioning, parameter tuning, and monitoring from a distance. This reduces on-site visits, speeds up startup, and supports proactive maintenance planning, especially in multi-site deployments or hard-to-reach equipment rooms.
Best-suited applications include air handling units, fans and pumps in commercial buildings, chiller plants, and large rooftop or packaged HVAC systems. Its high current rating and HVAC-optimized control logic help maintain stable operation, energy efficiency, and reduced equipment wear in critical building comfort and process cooling environments.
Installation benefits come from built-in HVAC control features and intuitive menus, which shorten commissioning time and minimize wiring mistakes. Regular maintenance is supported by remote monitoring options and reliable torque control, delivering a faster return on investment through energy savings, reduced downtime, and longer asset life.
