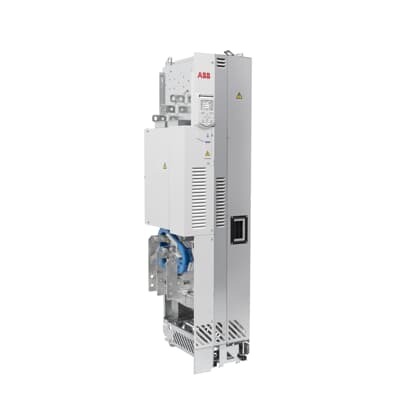

ABB ACH580-04-820A-4 LV AC drive module - 450 kW, 820 A
Part Number: 3ABD00046072-D
Quick Summary
ABB ACH580-04-820A-4 LV AC drive powers HVAC fans, pumps, and compressors in commercial and industrial systems. The challenge of lengthy commissioning and variable energy efficiency is common in HVAC drives, and this model helps address it with built-in HVAC optimization features. Key ratings include IP00 standard enclosure, optional IP20, and IEC-aligned performance at 450 kW and 820 A. This combination supports reliable, energy-efficient operation in HVAC cabinets while offering remote commissioning via Bluetooth and straightforward startup.
Product Information
Extended Description
3ABD00046072-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature → Business Impact → Application: Built-in HVAC drive functionality powers fans, pumps, and compressors with precise control, reducing energy consumption and wear on mechanicals; Application: optimize air handling units and chiller plant performance. Feature → Business Impact → Application: HVAC-specific primary settings menu with help assistants speeds up startup and commissioning, shortening project timelines and reducing commissioning cost; Application: rapid deployment in new installations. Feature → Business Impact → Application: Bluetooth capability enables remote commissioning and monitoring, lowering site visits and service costs while improving diagnostic access; Application: remote validation of HVAC drive parameters. Feature → Business Impact → Application: IP00 standard enclosure with IP20 option provides installation flexibility in cabinet environments, enabling both vertical panel mounting and retrofit in existing systems; Application: adaptable installation in plant rooms. Feature → Business Impact → Application: Intuitive control panel and built-in diagnostics shorten operator training and enable proactive maintenance; Application: improved uptime and reduced training overhead. Feature → Business Impact → Application: High-power capability at 450 kW and 820 A ensures compatibility with large HVAC loads, improving compliance with equipment sizing standards and reducing the need for multiple drives; Application: scalable design for mid- to large-capacity HVAC installations.
Get a Quick Quote for a ABB 3ABD00046072-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046072-D?
Enquire Now
FAQs
The ACH580-04-820A-4 is designed to control HVAC fans, pumps, and compressors in commercial and industrial settings. It provides precise speed control for air handling units, chillers, and related equipment, delivering energy efficiency and stable operation in mission-critical environments.
The 450 kW, 820 A rating defines the drive’s capability to accommodate large HVAC motors and compressor assemblies. It enables accurate current limiting, torque control, and protection features aligned to high-power loads, helping prevent motor overspeed, stalls, and electrical faults while supporting reliable long-term operation.
The ACH580-04-820A-4 ships with an IP00 enclosure as standard for cabinet installations, with an IP20 enclosure option available. This provides flexibility for panel mounting in different environments, enabling easier integration with existing electrical rooms and compliance with typical cabinet installation practices.
Bluetooth capability enables remote commissioning and monitoring, reducing on-site visits during setup and service. This supports off-site validation of parameter settings, easier startup checks, and faster issue resolution, which is especially valuable for multi-site installations.
Built-in diagnostics, intuitive control, and energy-optimized control algorithms contribute to reduced maintenance time and lower operating costs. The drive’s compatibility with large HVAC loads and its ability to streamline commissioning translate to shorter project timelines and a quicker return on investment.
