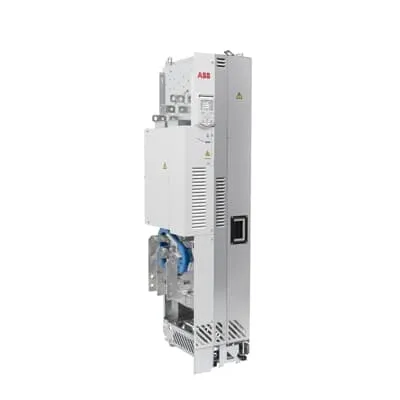

ABB ACH580-04-880A-4 HVAC Drive Module - IP20 Enclosure
Part Number: 3ABD00046073-D
Quick Summary
ABB ACH580-04-880A-4 HVAC drive module provides precise speed control for HVAC fans, pumps, and compressors. In mission-critical building automation, startups and commissioning time can drive energy waste and downtime if controls are slow to configure. Key standards include IP ratings (IP00 standard, IP20 enclosure option) and CE-aligned safety practices to support compliant cabinet installations. This solution integrates with HVAC systems and ABB drive ecosystems, delivering reliability, scalable connectivity, and measurable life-cycle cost reductions. From a single retrofit to campus-wide deployments, it enables faster commissioning and ongoing optimization without compromising reliability. With built-in features and intuitive setup, technicians reduce commissioning times by days while ensuring safe, efficient operation.
Product Information
Extended Description
3ABD00046073-D ABB: The ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time, and the intuitive control panel with an HVAC-specific primary settings menu and help assistants make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature built-in HVAC-focused control blocks and an HVAC-specific primary settings menu. Business impact includes faster commissioning, reduced configuration errors, and simpler integration with fans, pumps, and air-handling units. Application spans commercial HVAC retrofits and new installations where reliable speed control improves system balance and energy efficiency. Feature intuitive control panel with HVAC-oriented help assistants. Business impact is easier startup and fewer operational mistakes, enabling technicians to configure complex sequences for chillers, variable-air-volume systems, and packaged units with confidence. Application across air handling units and variable-air fans benefits maintenance teams by shortening fault diagnostics and empowering technicians with guided commissioning workflows. Feature optional Bluetooth capability for remote commissioning and monitoring. Business impact: minimizes on-site visits, accelerates commissioning, and supports proactive maintenance planning. Application includes remote sites, multi-building campuses, and offshore facilities requiring quick remote access. Feature IP00 standard enclosure with IP20 option. Business impact: flexible cabinet installation, improved heat management, and safer integration in industrial control panels. Application includes cabinet-mounted drives in centralized control rooms and compact RIO setups. Feature energy-efficient operation with built-in protection and monitoring. Business impact: lowers running costs, reduces energy consumption, and improves system reliability. Application across fans, pumps, compressors, and chillers in HVAC plants, including modernized data centers and commercial complexes.
Get a Quick Quote for a ABB 3ABD00046073-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046073-D?
Enquire Now
FAQs
The ACH580-04-880A-4 is designed for low-voltage HVAC applications and supports cabinet installations with an IP00 enclosure standard and an IP20 enclosure option. When selecting an enclosure, ensure adequate heat dissipation, space for wiring, and accessibility for commissioning. Plan for cable routing to minimize EMI and allow clear access to the intuitive panel. Compatibility with standard HVAC control cabinets simplifies retrofit projects and reduces downtime during installation.
Key specifications include a nominal power rating of 500 kW (Pn 500 kW) and a rated current of 880 A, suitable for large HVAC loads. It is a low-voltage AC drive designed to control motors in fans, pumps, and compressors. The device supports cabinet installation with IP-rated enclosures and integrates with HVAC plant controls, enabling precise speed regulation, smooth motor startup, and robust protection features.
The drive provides precise motor speed control, reducing excess flow and head pressure in fans and pumps, which directly lowers energy consumption. Its HVAC-focused features simplify startup sequences and allow efficient operation of chillers and air handling units. Remote commissioning and monitoring options enable proactive adjustments, minimizing energy waste and improving overall plant performance across multiple zones or campuses.
Yes, there is an optional Bluetooth capability that enables commissioning and monitoring from a distance. This feature reduces the need for on-site visits during startup, accelerates troubleshooting, and supports periodic health checks without opening the cabinet. Bluetooth-enabled commissioning is particularly beneficial for multi-site deployments, where technicians can configure settings and verify performance remotely.
This drive is ideal for HVAC applications such as fans, pumps, compressors, air-handling units, and chillers. It is designed for low-voltage HVAC control with IP-rated enclosure options, enabling reliable operation in cabinet environments. Use cases include retrofit upgrades for aging HVAC plants, campus-wide building automation, and new installations requiring efficient, scalable speed control with straightforward commissioning.
