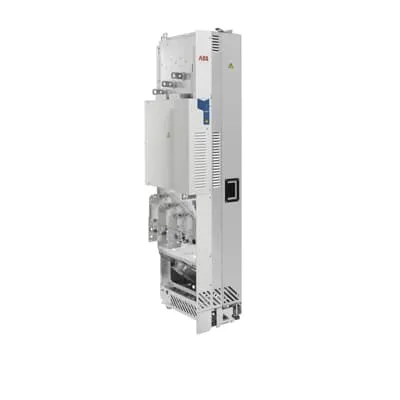

ABB 3ABD00046079-D LV AC drive module - 500 kW, 880 A (ACQ580-04-880A-4)
Part Number: 3ABD00046079-D
Quick Summary
ABB LV AC drive module 3ABD00046079-D optimizes energy-efficient pumping in water and wastewater systems. Engineers face energy waste and pump wear when variable flows outpace traditional controls, driving higher operating costs. This drive module supports IP00 cabinet installation with IP20 option and includes sensorless flow calculation, multipump control, level management, dry run protection, and quick ramps, all accessible via Hand-Off-Auto control and Drive Composer, with a Bluetooth option for remote diagnostics. By integrating an energy calculator, operators can quantify savings and justify capital costs, while ensuring reliable, compliant operation in municipal and industrial settings.
Product Information
Extended Description
3ABD00046079-D ABB: The ACQ580-04 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact drive module has a built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-04 drive module comes in an IP00 enclosure as standard for cabinet installation. In addition, an IP20 enclosure is available.
Feature: Sensorless flow calculation eliminates the need for external flow meters in many pumping circuits. Business Impact: reduces upfront instrumentation costs and ongoing maintenance while preserving precise flow control. Application: municipal water supply and wastewater pumping stations. Feature: Multipump control and level management enable coordinated operation of multiple pumps to meet demand while avoiding overshoot and wasted energy. Business Impact: improves system reliability, reduces peak electrical demand, and extends pump life. Application: treatment plants and lift stations with variable inflow. Feature: Dry run protection, soft pipe fill, and quick ramp capabilities minimize water hammer and mechanical stress on pumps and piping. Business Impact: lowers maintenance costs, reduces unscheduled downtime, and prolongs equipment life. Application: high-velocity startup scenarios and transient loads. Feature: Built‑in energy calculator, intuitive Hand‑Off‑Auto interface, Drive Composer PC tool, and optional Bluetooth enable rapid commissioning and ongoing optimization. Business Impact: verifiable energy savings, faster training, and easier remote diagnostics. Application: operator training programs and asset management programs. Feature: Compatibility with IP00 cabinet installations and IP20 enclosure option supports flexible deployment in standard electrical rooms. Business Impact: simplifies retrofits and cabinet integration, reducing installation time and risk. Application: retrofit projects and new builds in water/ wastewater facilities.
Get a Quick Quote for a ABB 3ABD00046079-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046079-D?
Enquire Now
FAQs
This module is designed for cabinet installation with an IP00 enclosure by default and IP20 as an option, allowing flexible integration within standard electrical rooms. Plan for adequate ventilation, cable management, and accessible control interfaces (H-O-A panel, Drive Composer). Verify clearances for service access and ensure proper radiator or enclosure cooling where required to maintain performance in water/wastewater facilities.
Sensorless flow calculation reduces the need for external flow meters, lowering CAPEX and maintenance while maintaining tight flow control. In practice, it enables accurate pump modulation, improves energy efficiency, and provides reliable feedback for level and demand management in pumping stations and treatment facilities.
Yes. The drive supports multipump control, enabling coordinated operation across multiple pumps to meet dynamic demand. This reduces cycling, balances duty across units, minimizes peak demand charges, and enhances system resilience in municipal pumping and wastewater lift stations.
The module provides IP ratings through its enclosure options (IP00 by default, IP20 available). For regulatory compliance beyond enclosure ratings, consult the product documentation for CE/UL/ULc or other regional certifications applicable to your installation, as these vary by region and specific model revisions. Always verify current certifications with your ABB representative before procurement.
ROI is driven by measurable energy savings from optimized pump control, reduced downtime due to dry run protection, and longer pump life from softened startups and reduced water hammer. Use the built-in energy calculator to model annual savings based on your flow profile, then factor in maintenance reductions and rapid commissioning with Drive Composer for an estimated payback period.
