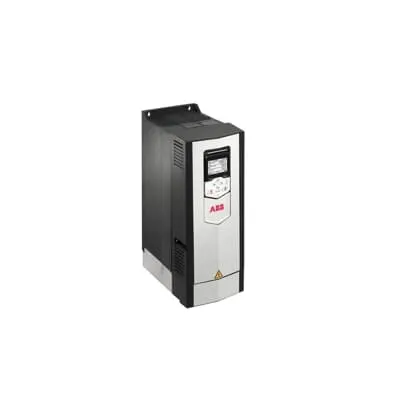

ABB 3ABD00046108-D Drive - IP55 Enclosure
Part Number: 3ABD00046108-D
Quick Summary
ABB 3ABD00046108-D is a wall-mounted LV AC industrial drive that precisely controls motors in conveyors, pumps, and mixers across manufacturing facilities. Engineers often face installation complexity, harmonic distortion, and integration challenges when retrofitting or upgrading legacy controls in harsh environments. This ACS880-01 family delivers built-in harmonic filtering, IP55 enclosure options, and optional features like brake choppers, EMC filters, and I/O extension to reduce integration risk. The result is a compact, robust drive that improves reliability, lowers energy waste, and accelerates project timelines for industrial automation and motor control applications.
Product Information
Extended Description
3ABD00046108-D ABB: The ACS880-01 drives are customized to meet the particular needs of specific industries, such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills, marine, water and wastewater, food and beverage, and automotive. They can control a wide range of applications, including cranes, extruders, winches, winders, conveyors, mixers, compressors, centrifuges, test benches, elevators, extruders, pumps, and fans. The ACS880-01 comes in one compact package for easy installation and commissioning. The drive can be installed on the wall as standard and in a cabinet as an option. The drive offering includes enclosure classes up to IP55, making it suitable for most environments and installations. ACS880-01 drives have all the essential features built-in. These features include as standard a choke for harmonic filtering as well as options like a brake chopper, EMC filter and communication protocol adapter, functional safety, external output filters, and I/O extension modules.
Feature → Business Impact → Application: Built-in harmonic filtering reduces current distortion and improves power quality, leading to quieter operation and longer drive life in conveyors and pumps. This translates to lower maintenance costs and fewer panel faults in busy production lines. Feature → Business Impact → Application: Compact wall-mounted design saves valuable cabinet space, enabling retrofit installations in space-constrained plants such as mining terminals and marine facilities while simplifying commissioning for OEM projects. Feature → Business Impact → Application: IP55 enclosure options provide robust protection in dirty or damp environments, reducing environmental enclosure requirements and allowing deployment in dusty workshops and outdoor plants. Feature → Business Impact → Application: Brake chopper and EMC filter options lower electrical noise and enable safer dynamic braking for hoisting systems, winders, and material-handling conveyors. Feature → Business Impact → Application: I/O extension modules and communication adapters simplify PLC integration and remote control, speeding up commissioning and reducing wiring errors in complex automation networks. Feature → Business Impact → Application: Functional safety capabilities support safer operation and compliance in critical processes, reducing risk in packaging lines, metals processing, and automated material handling.
Get a Quick Quote for a ABB 3ABD00046108-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046108-D?
Enquire Now
FAQs
The 3ABD00046108-D is a wall-mounted LV AC drive designed for retrofit or new builds. Its compact footprint and IP55-compatible enclosure simplify installation in space-limited panels and outdoor or damp locations. Verify panel space, mounting clearances, and cooling, then plan wiring to the built-in I/O and comms adapters to minimize wiring complexity and integration time with the plant PLC.
The drive delivers 5.5 kW of output with a rated current of 7.4 A, enabling reliable control for medium-sized motors. Harmonic filtering reduces waveform distortion, improving motor efficiency and reducing auxiliary equipment wear. The integrated options support safe braking and flexible motor control for conveyors, pumps, and winches, while enabling smooth acceleration/deceleration in demanding processes.
Yes. The ACS880-01-based 3ABD00046108-D is engineered for heavy industry applications such as cranes, winders, conveyors, and pumps. Its wall-mount design, IP55 protection, and optional brake chopper/EMC filters make it well-suited for harsh mining and metals environments, delivering reliable motor control, efficient energy use, and easier maintenance under demanding operating conditions.
The drive features IP55 enclosure protection and CE-compatible design with built-in safety and EMI considerations. Functional safety options support safer operation in automated lines, while harmonic filtering and robust electrical protections help maintain compliance with power quality requirements in modern factories and process plants.
ROI benefits come from reduced energy waste due to improved motor efficiency, lowered harmonic currents, and fewer maintenance events thanks to built-in protections and fewer external components. The compact installation reduces panel space and commissioning time, while safe braking and easy PLC integration minimize downtime during start-up and changeovers in high-demand production lines.
