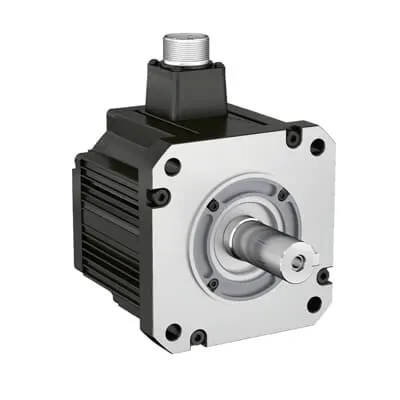

ABB 3ABD00046214 ESM Servo Motor - 11 kW (Absolute Encoder)
Part Number: 3ABD00046214
Quick Summary
ABB ESM servo motor delivers precise, high-torque LV AC motion control for demanding production lines and automated equipment. When machines demand fast setup and reliable performance, long homing cycles and torque variability can bottleneck uptime and throughput. Industry-standard certifications such as CE marking, safety compatibility, and robust enclosure protections help ensure predictable operation in harsh environments. Designed for seamless integration with MotiFlex e180 and MicroFlex e190 servo drives, the ESM reduces integration risk and supports scalable automation architectures. With an optional absolute encoder, setup times are minimized and production begins faster, delivering measurable efficiency gains.
Product Information
Extended Description
3ABD00046214 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature: High torque density and quick dynamic response enable more compact motor footprints while delivering full Pn 11 kW power. Business Impact: Higher throughput, shorter cycle times, and simplified machine layouts translate to greater asset utilization and reduced floor space costs. Application: Packaging lines, pick-and-place in robotics, and precision CNC machines benefit from faster repositioning and tighter control loops. Feature: Energy-efficient design and low maintenance requirements reduce total cost of ownership through lower energy bills and less frequent service visits. Business Impact: Lower running costs and predictable maintenance windows improve budget stability and uptime. Application: Continuous production environments in automotive, food & beverage, and material handling. Feature: Absolute encoder option supports immediate position feedback without homing cycles, decreasing machine setup time significantly. Business Impact: Faster commissioning and reduced startup scrap, improving overall line productivity. Application: High-precision dosing, offset-free positioning, and multi-axis integration with ABB drives. Feature: Seamless ABB ecosystem compatibility with MotiFlex e180 and MicroFlex e190 drives ensures reliable integration and diagnostics. Business Impact: Streamlined installation, enhanced fault detection, and accelerated commissioning. Application: Integrated automation cells, robotic workstations, and automated assembly lines. Feature: Various flange sizes and high torque density enable flexible retrofits and compact system designs. Business Impact: Easier upgrades and scalable installations with consistent performance across line extensions. Application: Retrofitting older machines, OEM equipment, and modular automation platforms.
Get a Quick Quote for a ABB 3ABD00046214
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046214?
Enquire Now
FAQs
The ABB ESM servo motor is designed for seamless pairing with MotiFlex e180 and MicroFlex e190 servo drives. Mechanical mounting aligns with standard servo motor patterns, while the encoder feedback integrates through common ABB drive interfaces. For best results, verify coupling alignment, torque limits, and safe wiring practices, then perform a controlled test run to validate dynamic response and control loops.
Key specifications include a power rating of 11 kW and a nominal torque around 70.1 N·m at 400 V operation. The motor is a LV AC servo design with precise position feedback via encoders, and it supports high torque density with fast dynamic response. Optional absolute encoder feedback can eliminate homing cycles to shorten setup times and improve daily throughput.
Yes. The 11 kW ESM servo motor combines high torque density with quick dynamic response, making it well-suited for packaging lines, pick-and-place robotics, and automated assembly. Its compatibility with ABB drives and optional absolute encoder support accelerates commissioning, while reliable operation and energy efficiency help sustain high throughputs in demanding environments.
This motor is designed to align with typical industrial automation safety and regulatory expectations, including CE marking for European markets and compatibility with standard safety architectures. When selecting it for a specific region or application, confirm local certification requirements and ensure proper integration with protective enclosures and safety interlocks.
The motor features a robust, low-maintenance design and energy-efficient operation, contributing to lower lifecycle costs. By reducing setup time with an optional absolute encoder and improving reliability through a proven ABB drive ecosystem, users can achieve faster time-to-value, reduced downtime, and measurable return on investment over its service life.
