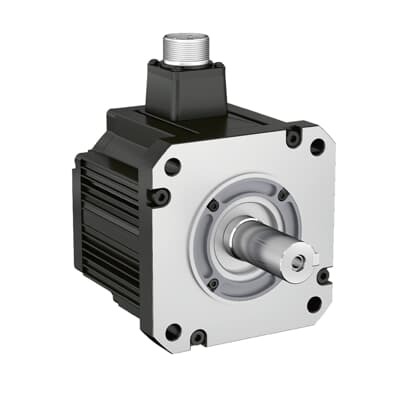

ABB 3ABD00046217 LV AC Servo Motor - 11 kW, torque-dense
Part Number: 3ABD00046217
Quick Summary
ABB eSM servo motor provides precise positioning for high-speed automation in packaging, CNC, and robotics. Many systems suffer from long homing cycles, setup delays, and costly maintenance. Certification considerations include CE compliance for European markets, IP-rated enclosure protection for harsh environments, and SIL-compatible safety integration as part of a broader control system. When paired with the MotiFlex e180 and MicroFlex e190 drives, the eSM delivers improved system reliability, energy efficiency, and streamlined set-up. This combination supports higher productivity and consistent product quality, while reducing waste and downtime. The motor’s encoder options enhance accuracy, and its compact design eases integration into existing line layouts.
Product Information
Extended Description
3ABD00046217 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature: High torque density and quick dynamic response. Business impact: The eSM motor delivers more torque in a compact envelope, enabling faster accelerations, tighter control, and reduced mechanical stress on gear trains. Application: Packaging lines, robotics, and CNC workflows benefit from shorter cycle times, improved precision, and smaller machine footprints without sacrificing performance in demanding environments. Feature: Absolute encoder option reduces homing cycles and setup time. Business impact: Eliminates or minimizes homing, accelerating machine commissioning and reducing non-productive downtime. Application: Robotics, assembly cells, and high-mix manufacturing lines benefit from faster changeovers and consistent start positions. Feature: Tight integration with MotiFlex e180 and MicroFlex e190 drives. Business impact: Simplified commissioning, fewer wiring errors, and improved overall system reliability. Application: Multi-axis cells, modular automation lines, and retrofits across packaging, printing, and assembly industries. Feature: Energy-efficient, low-maintenance design. Business impact: Lower operating costs through reduced energy use, longer bearing life, and fewer service intervals. Application: Continuous operation in harsh, high-duty environments like plastics, textiles, and metalworking. Feature: Flexible flange sizes and 400 V compatibility. Business impact: Easy mechanical fit and straightforward electrical integration, minimizing installation time and retrofit risk. Application: Retrofit projects and new lines in automotive, electronics, and food & beverage manufacturing.
Get a Quick Quote for a ABB 3ABD00046217
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046217?
Enquire Now
FAQs
The ABB eSM servo motor is designed to integrate with MotiFlex e180 and MicroFlex e190 servo drives, enabling coordinated multi-axis control on automated lines. This compatibility supports high-speed packaging, robotics, and CNC workflows by simplifying commissioning, easing wiring, and enabling advanced motion profiles while maintaining system reliability.
The absolute encoder provides precise position data without requiring homing cycles after power-up, which significantly shortens setup time and reduces non-productive downtime. This is especially advantageous in high-mix, low-volume production or robotic pick-and-place where rapid changeovers are common.
Yes. The motor is a 400 V LV AC servo motor with a nominal power rating of 11 kW (Pn 11 kW), designed for high-torque, precision motion. Its encoder options and compatibility with ABB drives optimize performance on European and similar 3-phase power systems while supporting efficient, reliable operation.
Plan for compatible flange sizes and mounting footprints, 400 V power connections, and space for the encoder option. The motor’s compact torque-dense design helps maintain throughput in tight spaces, while its compatibility with MotiFlex e180 and MicroFlex e190 reduces wiring complexity and commissioning time.
Expect lower maintenance due to a reliable, energy-efficient design and reduced downtimes from features like absolute encoding. The combination with ABB drives improves system reliability, which translates to higher uptime, reduced waste, and favorable total cost of ownership over the motor’s service life.
