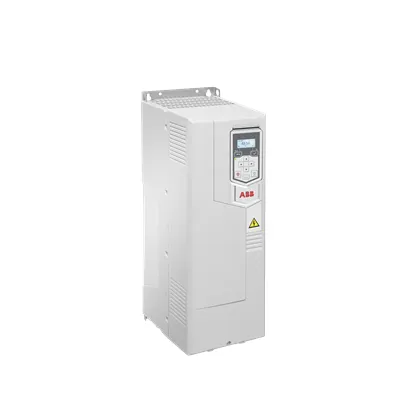

ABB ACS530-01-062A-4+J400 Drive - IP20 Wall-Mount
Part Number: 3ABD00046339
Quick Summary
The ABB ACS530-01-062A-4+J400 Drive provides precise variable speed control for compressors, conveyors, and pumps in light industrial applications. Many engineers struggle with lengthy setup and integration, and this drive addresses that by delivering built-in features that reduce wiring, programming, and commissioning time. It carries CE marking and an IP20 wall-mounted enclosure, aligning with common regulatory requirements while remaining robust in demanding environments. Designed for easy integration in automation projects, it supports scalable motor drive performance, helping OEMs and maintenance teams lower total cost of ownership and simplify spare parts management across manufacturing lines.
Product Information
Extended Description
3ABD00046339 ABB: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Built-in features simplify drive selection and setup, delivering a turnkey solution that minimizes external hardware and wiring. The business impact is lower capital expenditure and faster commissioning, enabling operators to bring lines online sooner in manufacturing environments such as food and beverage or plastics. The IP20 enclosure and rugged design ease installation across varied plant conditions, reducing downtime and maintenance needs while providing reliable operation in conveyors, pumps, and fans. Pre-configured parameter sets for compressors, conveyors, pumps, centrifuges, and fans enable rapid start-up, reducing engineering hours and accelerating project timelines. Compatibility with standard 3-phase motors and straightforward control wiring supports quick integration into existing control architectures, while a basic control panel keeps ongoing maintenance simple. Addressing common objections, the ACS530-01 delivers a compact, all-in-one drive that minimizes external hardware, lowers wiring complexity, and supports scalable performance as automation needs evolve.
Get a Quick Quote for a ABB 3ABD00046339
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046339?
Enquire Now
FAQs
The ACS530-01 is designed for wall-mount installation with an IP20 enclosure. Begin by mounting the unit securely, then connect the three-phase input supply to the drive input terminals and wire the motor to the output terminals. Use the built-in setup wizard or factory parameter sets for compressors, conveyors, or pumps to minimize external hardware. Ensure protective earth is connected and verify motor rating matches the drive’s 30 kW/62 A capability. This approach reduces commissioning time and simplifies spare parts planning.
For compressors, target a 30 kW power rating with an IN of 62 A, compatible with typical three-phase motors. The ACS530-01 supports precise speed control, enables soft-start to reduce inrush, and provides built-in control for constant torque loads. Its IP20 enclosure is suitable for standard dry environments, and CE marking ensures compliance with essential safety and EMC requirements. Always verify motor headroom and wiring length limits to preserve drive efficiency and reliability.
Yes, the drive is designed for light-industrial applications including food and beverage, plastics, textiles, and material handling. The IP20 wall-mount enclosure provides robust protection for typical factory floors, while built-in features help minimize contamination risk and simplify maintenance. CE certification supports regulatory compliance, and the rugged design accommodates varied plant conditions. For washdown environments, consider additional protection or alternative models specified for higher ingress protection.
The ACS530-01 carries CE marking, confirming compliance with essential European safety, health, and environmental requirements. It is housed in an IP20-rated enclosure, suitable for dry, non-washdown environments. While this affirms conformity for many regions, always verify local standards and any industry-specific requirements (for example, in mining or food processing) to ensure full regulatory alignment. If higher ingress protection is needed, explore alternative enclosure options in ABB’s drive lineup.
The built-in features reduce external hardware and lower wiring complexity, which shortens installation and commissioning time. A compact, all-in-one solution can lower initial capital expenditure and spare-part inventories while improving overall energy efficiency through precise motor control. Fewer components and a simpler control panel translate to reduced maintenance labor and downtime, contributing to a faster return on investment in automated lines such as conveyors and pumps across light-industrial sectors.
