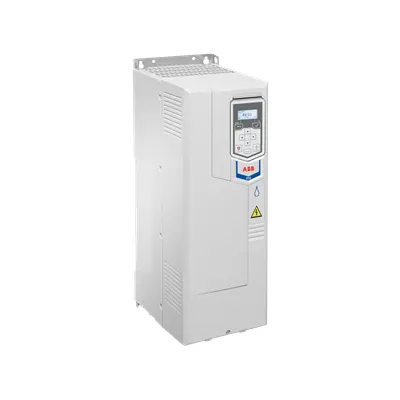

ABB ACQ531-01-062A-4 Motors & Drives - IP20 Enclosure
Part Number: 3ABD00046386
Quick Summary
The ABB ACQ531-01-062A-4 drives deliver precise pump control for water and wastewater applications in a compact wall-mounted package. Engineers and procurement teams often face energy waste, variable pump demand, and lengthy commissioning; this drive streamlines setup while delivering measurable efficiency gains. Key certifications and ratings include IP20 enclosure as standard and CE compatibility for industrial compliance, with optional control panels and the Drive Composer PC tool expanding capabilities. Together, these features translate to lower operating costs, faster project timelines, and reliable, compliant pumping solutions for utilities and process facilities, while supporting energy optimization and predictable performance in demanding environments.
Product Information
Extended Description
3ABD00046386 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump application functionality enhances pump control algorithms and reduces start-stop cycling. Business Impact: Improves system reliability and lowers energy consumption through optimized speed profiles, delivering tangible operating-cost reductions. Application: Water and wastewater pumping stations seeking consistent flow and reduced energy bills. Feature: Built-in energy calculator and reporting tools. Business Impact: Enables quick ROI calculations and transparent energy savings reporting to stakeholders. Application: Utilities and process plants needing justifications for capital projects and ongoing performance audits. Feature: Compact wall-mounted IP20 enclosure. Business Impact: Simplifies installation, saves cabinet space, and reduces wiring complexity, accelerating commissioning. Application: Plant rooms and municipal facilities with limited space. Feature: Optional Hand-Off-Auto control panel and Bluetooth controller. Business Impact: Provides flexible local and remote control options, improving maintenance efficiency and fault response times. Application: Remote sites, service contractors, and on-site technicians. Feature: Drive Composer PC tool compatibility. Business Impact: Streamlines configuration, commissioning, and software updates, shortening startup and reducing engineering labor. Application: Integrated control environments and ABB-based automation ecosystems. Feature: 62 A input and 30 kW output specification. Business Impact: Matched to mid-range pump loads with scalable motor drive performance, ensuring reliable operation under typical municipal and industrial duty cycles. Application: Medium-sized pumping solutions in water treatment and distribution.
Get a Quick Quote for a ABB 3ABD00046386
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046386?
Enquire Now
FAQs
This drive is designed for wall-mounted installation and is compatible with standard motor/pump configurations up to 30 kW. The 62 A input rating aligns with common medium-sized pump applications, and the IP20 enclosure simplifies cabinet integration. When upgrading, verify motor FLA, cable sizing, and control wiring to ensure seamless retrofits and fault-free operation.
Expect a 30 kW output with a 62 A input rating, housed in a standard IP20 wall-mounted enclosure. The drive supports pump optimization features, optional control panels, and Drive Composer integration. These specifications enable efficient, customizable speed control for water and wastewater pumping while maintaining reliable protection and straightforward installation.
Yes. The ACQ531-01-062A-4 is purpose-built for water and wastewater pumping, offering pump-specific features, energy-saving capabilities, and compact installation. Its wall-mounted design and optional H-O-A panel simplify field deployment, while the energy calculator helps justify improvements in head, flow, and overall system efficiency.
The drive features an IP20 enclosure for indoor, non-harsh environments and is compatible with CE-grade commissioning practices for industrial equipment. These characteristics support regulatory compliance in typical utility and municipal installations, while ensuring safe operation, ease of maintenance, and interoperability with standard control architectures.
ROI is driven by energy savings from optimized pump operation and reduced wear from smooth acceleration/deceleration. The built-in energy calculator and Drive Composer simplify performance tracking and upgrades. Maintenance benefits include fewer field faults due to robust wall-mount design and optional remote-control panels that reduce site visits and downtime.
