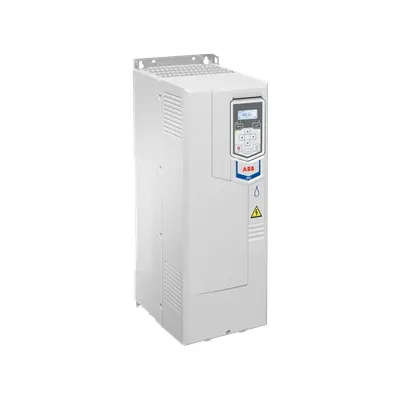

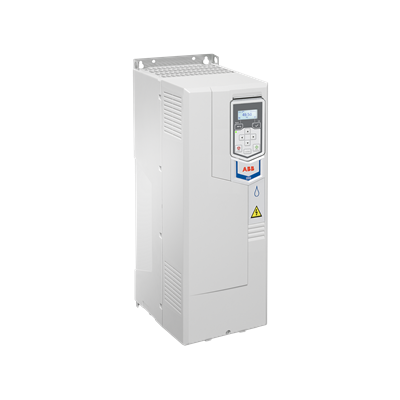

ABB 3ABD00046387 ACQ531-01 Drives - IP20 Enclosure
Part Number: 3ABD00046387
Quick Summary
ACQ531-01 drives from ABB deliver energy-efficient pump control for water and wastewater applications. Many water utilities struggle with energy waste and limited local control in pump stations. With an IP20 enclosure and built-in pump application features, the drive supports reliable, safe operation; optional Hand-Off-Auto control panel, Drive Composer PC tool, and Bluetooth control panel extend versatility. This combination translates to reduced commissioning time, better operational visibility, and scalable automation that aligns with broader efficiency programs while supporting municipal and industrial pumping needs.
Product Information
Extended Description
3ABD00046387 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump application functionality. Business Impact: Accelerates commissioning and reduces external software dependencies, improving reliability for critical pumping. Application: Municipal water treatment and wastewater pump stations. Feature: Integrated energy calculator. Business Impact: Visualizes potential savings, enabling data-driven optimization and lower operating costs. Application: All ABB pumping solutions in municipal and industrial settings. Feature: IP20 enclosure with wall-mounted design. Business Impact: Safe indoor installation, space savings, and easier retrofits in plant rooms. Application: Retrofit projects and new builds in water/wastewater facilities. Feature: Optional Hand-Off-Auto control panel and Bluetooth control panel. Business Impact: Enhanced operator control, remote monitoring, and simplified maintenance routines. Application: Day-to-day operations and field commissioning. Feature: Drive Composer PC tool compatibility. Business Impact: Streamlined configuration and integration with existing automation infrastructure, reducing engineering time. Application: SCADA-ready deployments and scalable plant automation.
Get a Quick Quote for a ABB 3ABD00046387
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046387?
Enquire Now
FAQs
Begin by confirming the IP20 enclosure and wall-mount suitability for your indoor control room. Mount the ACQ531-01, wire the motor and power supply per ABB installation guidelines, and connect the pump feedback signals. Use Drive Composer PC tool for initial configuration and, if needed, add the optional Hand-Off-Auto panel for local control. Verify SCADA integration and test run status to ensure reliable operation.
The built-in energy calculator visualizes potential energy savings by comparing actual pump performance to optimized setpoints within the ACQ531-01. Savings depend on pump curve alignment, duty cycle, and process variability. By adjusting speed and leveraging pump-specific features, operators can quantify or exceed expected efficiency gains during commissioning and maintenance planning.
Yes. The ACQ531-01 variant is designed for water and wastewater pumping, featuring pump-specific functionality, a compact wall-mounted form factor, and an IP20 enclosure. Its optional control panels and PC tools facilitate straightforward deployment in municipal facilities and industrial treatment plants, with measurable efficiency and control benefits.
IP20 indicates protection against solid objects larger than 12.5 mm and no protection against liquids, making the enclosure suitable for indoor, controlled environments like plant rooms. It does not guarantee liquid ingress protection; ensure installation remains dry and within the intended regulatory context for electrical equipment in your facility.
Maintenance is typically minimal due to robust construction and integrated pump control features. ROI is driven by energy savings from optimized pump operation, reduced commissioning time with Drive Composer, and improved reliability with HO-A control options. Real-world ROI varies with duty cycle, pump efficiency, and maintenance scheduling.
