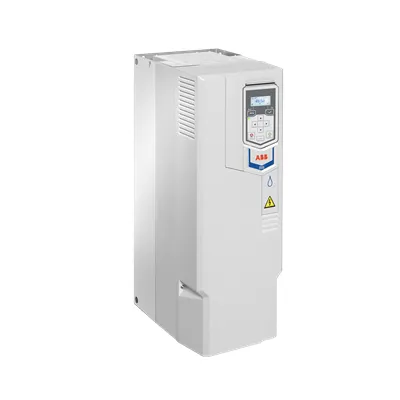

ABB ACQ531-01 Drives - Wall-Mount Controller IP20
Part Number: 3ABD00046388
Quick Summary
ABB ACQ531-01 drives are compact, wall-mountable variable frequency drives that optimize pump performance in water and wastewater applications. Operators often struggle with energy waste, uneven flow, and complex commissioning, which this drive helps address through targeted pump features. It leverages IP20 enclosure standards and an energy calculator to quantify savings, with optional Hand-Off-Auto, Drive Composer, and Bluetooth control. This combination supports faster installation, predictable maintenance, and measurable return on investment for municipal and industrial pumping projects. The compact, wall-mount design reduces cabinet footprint and simplifies retrofits in space-constrained facilities. With built-in energy calculations, intuitive configuration tools, and optional remote controls, operators gain confidence through measurable efficiency gains.
Product Information
Extended Description
3ABD00046388 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Pump-focused drive functions are embedded to deliver application-specific logic for centrifugal pumps. Business Impact: Reduces energy consumption and improves flow predictability, with real-time visibility into pump performance. Application: Ideal for municipal water/wastewater pumps, industrial processing, and other centrifugal pumping systems. Feature: IP20 enclosure and wall-mount design. Business Impact: Lowers cabinet footprint and simplifies installation, cutting capital expenditure and commissioning time. Application: Retrofit projects and new-build pump rooms in utilities and industrial facilities. Feature: Optional Hand-Off-Auto control panel, Drive Composer PC tool, and Bluetooth control panel. Business Impact: Accelerates commissioning, enables remote tuning, and reduces on-site service time. Application: Field deployments, remote sites, OEM integrations. Feature: Built-in energy calculator visualization. Business Impact: Quantifies energy savings and supports ROI justification to stakeholders. Application: Performance monitoring in water/wastewater networks and industrial fluid handling. Feature: 45 kW nominal power with 88 A input in a robust wall-mounted package. Business Impact: Supports high-capacity pumping with compact footprint, enabling scalable operations. Application: Municipal pumping stations, wastewater treatment facilities, and large-scale industrial water handling.
Get a Quick Quote for a ABB 3ABD00046388
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046388?
Enquire Now
FAQs
Mount the ACQ531-01 on a clean, level wall inside the IP20 enclosure and follow the ABB wiring diagram for three-phase supply and motor connections. Use the Drive Composer tool or the optional Hand-Off-Auto panel for local control. For remote monitoring, consider the Bluetooth control panel and ensure proper ventilation and clearance per ABB guidelines.
Key specs include a 45 kW nominal power rating, 88 A input current, IP20 enclosure, and wall-mount installation. The drive offers pump-focused features, built-in energy calculations, and compatibility with optional Hand-Off-Auto, Bluetooth control panel, and Drive Composer PC tool to streamline configuration and commissioning.
Yes. The ACQ531-01 is designed for pump control in water and wastewater infrastructure, delivering energy-efficient operation and reliable wall-mount installation. Its 45 kW rating and IP20 enclosure make it appropriate for municipal stations, treatment facilities, and industrial process pumps needing compact, space-efficient drives.
The product includes an IP20 enclosure as standard, supporting safe wall-mount installation. For formal certifications such as CE or SIL, refer to the official ABB datasheet and local regulatory requirements, as these can vary by region and installation. Always verify compliance in your specific project context.
The built-in energy calculator provides quantitative insight into potential energy savings, enabling data-driven ROI calculations for pump projects. Coupled with optional Hand-Off-Auto, Bluetooth panels, and Drive Composer, maintenance planning becomes proactive, commissioning is faster, and ongoing operation gains measurable efficiency with lower life-cycle costs.
