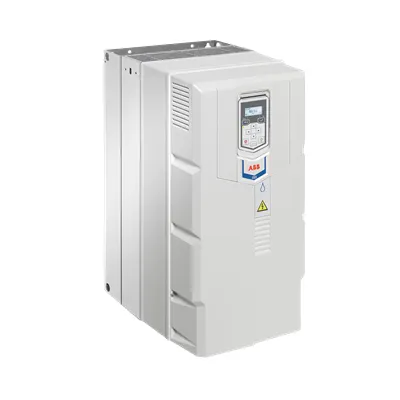

ABB ACQ531-01 Drives for Water/Wastewater - IP20 Enclosure
Part Number: 3ABD00046391
Quick Summary
ACQ531-01 drives deliver precise pump control for water and wastewater applications. Engineers often struggle with balancing energy use, installation space, and quick commissioning in retrofit projects. This wall-mounted drive features an IP20 enclosure, built-in energy calculator, and simple pump application functionality, with optional Hand-Off-Auto control panel, the Drive Composer PC tool, and Bluetooth control panel to streamline setup. The compact design reduces cabinet footprint while maintaining robust protection and reliability. By integrating these capabilities, operation teams gain measurable energy savings, faster commissioning, and easier diagnostics, translating to lower total cost of ownership and improved process stability in municipal and industrial pumping installations.
Product Information
Extended Description
3ABD00046391 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Built-in energy calculator delivers real-time visibility into energy savings, enabling you to quantify ROI for water and wastewater pumps and justify capital expenditure. This translates to lower energy costs, improved efficiency metrics, and predictable operating costs in treatment plants and pump stations. The ACQ531-01 also includes simple pump application functionality that reduces commissioning time and minimizes startup risk, helping project teams meet tight deployment schedules while maintaining system reliability and compliance with utility standards. Its IP20 wall-mounted enclosure saves valuable cabinet space and simplifies installation in constrained pump rooms, reducing civil works and enabling quicker integration with existing MCCs and control architectures. Optional Hand-Off-Auto control panels provide intuitive manual override and seamless automation handoff, while the Drive Composer PC tool accelerates programming, testing, and diagnostics for rapid fault isolation and maintenance planning. A Bluetooth control panel option adds remote access and field service convenience, supporting flexible maintenance windows and reduced on-site labor costs. Overall, these features deliver higher uptime, lower total cost of ownership, and improved process stability for water and wastewater pumping applications.
Get a Quick Quote for a ABB 3ABD00046391
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046391?
Enquire Now
FAQs
Install the ACQ531-01 in its IP20 wall-mounted enclosure next to the pump control cabinet, ensuring a proper 3-phase power supply capable of supporting up to 90 kW and 169 A input. Verify motor compatibility with the drive’s voltage and speed range, and configure the unit using the Drive Composer PC tool. If using optional peripherals, plan for Hand-Off-Auto panels or Bluetooth control for field service. Always follow ABB installation guidelines and local electrical codes.
Key performance specs include 90 kW output and 169 A input, IP20 protection, and wall-mount design for space efficiency. The built-in energy calculator helps monitor drive-driven energy use, while simple pump application functionality reduces commissioning risk. These features together support stable flow control in variable load conditions typical of water and wastewater pumping, improving overall system reliability.
Yes. The ACQ531-01 is designed for water and wastewater pumping scenarios, offering a compact wall-mounted form factor with IP20 protection and built-in pump-specific functionality. Its configurable controls, optional H-O-A panels, and remote tooling support make it well-suited for municipal booster stations, lift stations, and packaged pump skids where space and reliability are critical.
The product features an IP20 enclosure suitable for wall mounting, which aligns with common protection requirements for indoor electrical assemblies in pump rooms. For projects requiring formal certifications beyond IP protection, consult ABB documentation and local regulatory requirements to confirm CE/UL or other listings as applicable, since those certifications vary by region and configuration.
ROI benefits stem from energy savings enabled by the built-in energy calculator and efficient pump control, along with reduced commissioning time thanks to simple pump application functionality. Ongoing maintenance is facilitated by diagnostics-ready software, optional Drive Composer PC tool, and remote control options like Bluetooth. Together these features lower operating costs and improve uptime for water/wastewater pumping systems.
