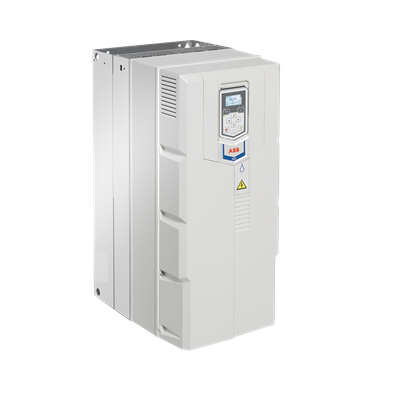

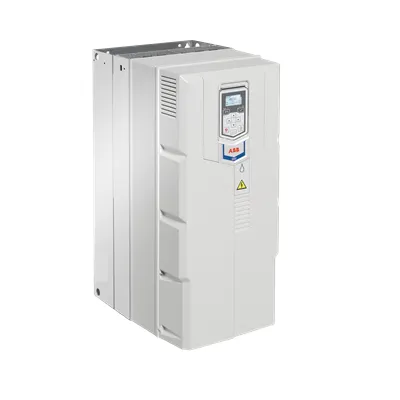

ABB 3ABD00046393 Motors & Drives - IP20 enclosure
Part Number: 3ABD00046393
Quick Summary
ABB 3ABD00046393 drives deliver precise motor control for efficient water and wastewater pumping systems. Operators face energy waste and pump instability when variable flow occurs, increasing costs and stressing equipment. This wall-mounted AC drive combines pump-application features with an IP20 enclosure and optional Hand-Off-Auto control panel, plus the Drive Composer PC tool and Bluetooth control panel, enabling quick commissioning and remote tuning. Its built-in energy calculator visualizes savings opportunities, supporting sustainable operations and regulatory compliance. With ABB quality and service support, this solution helps you reduce energy consumption, simplify maintenance, and scale from single-pump to multi-pump networks in municipal or industrial facilities.
Product Information
Extended Description
3ABD00046393 ABB: The ACQ531-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in simple pump application functionality. Usability is further enhanced with the optional intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ531-01 variant comes in an IP20 enclosure as standard and can be installed on the wall.
Feature: Built-in pump application features simplify start-up and tuning for centrifugal pumps. Business Impact: Reduces set-up time, minimizes hydraulic shocks, and protects piping and valves. Application: Water and wastewater pumping stations. Feature: Energy calculator and efficiency-focused controls. Business Impact: Visualizes energy savings and supports regulatory reporting, lowering operating costs. Application: All pumping schemes seeking ongoing energy optimization. Feature: IP20 enclosure and compact wall-mounted design. Business Impact: Eases installation in constrained spaces and improves safety with a protective housing. Application: Control rooms and plant walls near pump mezzanines. Feature: Optional Hand-Off-Auto (HOA), Bluetooth panel, Drive Composer compatibility. Business Impact: Enables quick handover, remote diagnostics, and streamlined commissioning workflow. Application: Plants requiring remote monitoring and scalable control. Feature: Robust design for water and wastewater conditions; compatibility with multi-pump networks. Business Impact: Supports reliability and expansion; Application: Municipal networks and industrial process lines seeking consistent flow.
Get a Quick Quote for a ABB 3ABD00046393
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046393?
Enquire Now
FAQs
ABB 3ABD00046393 on-wall installation requires a suitable three-phase power supply and adequate mounting clearance for heat dissipation. The drive ships in an IP20 enclosure and is designed for compact wall mounting near pumps, with accessible terminals and a convenient footprint for control panels. Ensure proper enclosure venting and compliance with local electrical codes during commissioning.
ACQ531-01 drives deliver 132 kW of motor power with a 246 A input rating, enabling precise speed control for pump applications. The energy calculator helps quantify savings from VFD operation, while compatibility with Drive Composer streamlines parameter setup and troubleshooting. Expect smoother starts, reduced mechanical stress, and improved system efficiency across varied load profiles.
Yes, this drive is designed for water and wastewater pumping, offering built-in pump functionality, compact wall mounting, and optional HOA and Bluetooth panels for flexible operation. Its energy calculator and scalable architecture support municipal plants and industrial facilities seeking reliable flow control, reduced energy use, and straightforward maintenance in challenging pumping environments.
Key certification reference for procurement includes the IP20 enclosure; confirm CE compliance and SIL-rated safety features with your supplier per local requirements. ABB drives in this family are typically validated for installation in plant environments, but project-specific certifications may vary by region and application.
Deploying this drive can lower total cost of ownership through energy savings, reduced wear on motors, and simpler maintenance due to integrated tooling. The option to use HOA, Drive Composer, and Bluetooth panels speeds commissioning and remote diagnostics, delivering faster ROI in municipal networks and industrial processes.
