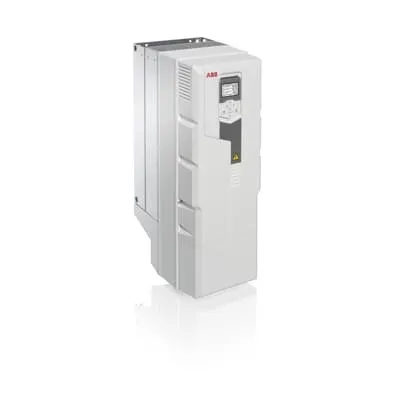

ABB ACS580-01-145A-4+N7511+J404 Wall-Mounted Drive - IP21
Part Number: 3ABD00046564-D
Quick Summary
The ABB ACS580-01-145A-4+N7511+J404 wall-mounted LV AC drive precisely controls motors for compressors, conveyors, and pumps. Setting up drives quickly and ensuring compatibility with existing controls is a common bottleneck in plant startups. Its IP21 enclosure, rugged design, and built-in features support fast commissioning while minimizing extra hardware and maintenance. With energy-efficient control and robust protection, it helps operators reduce downtime and total cost of ownership. Designed for light-industrial automation environments, it’s a dependable choice for manufacturers seeking reliable motor drive performance in a compact, easy-to-service package.
Product Information
Extended Description
3ABD00046564-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
The ACS580-01 is plug-in ready to control a broad range of loads—including compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans—streamlining integration across multiple line applications. This streamlined integration reduces panel complexity, minimizes external hardware needs, and accelerates startup times in light-industrial environments where downtime is costly. Built-in features and a versatile settings menu let commissioning, operation, and maintenance proceed with minimal training and fewer configuration errors. Assistants and guided workflows translate complex parameter tuning into repeatable setups, delivering consistent performance across shifts and plant sections. The standard IP21 enclosure is complemented by IP55 and flange mounting options, giving installers the flexibility to meet diverse environmental and space constraints without redesigning the control system. This rugged, wall-mounted form factor simplifies integration into existing panels while preserving a compact footprint for crowded machine rooms. Control capabilities include precise torque and speed management for both variable and constant torque loads, enabling energy savings, smoother startups, and tighter process control. With robust protection features, the drive maintains performance under light dust, humidity, and heat, reducing unplanned downtime in conveyors and pumps. Compatibility with standard industrial controls and minimal wiring requirements translate to faster installations and lower total cost of ownership during retrofits or new line builds. Built-in diagnostics and intuitive prompts help maintenance teams foresee wear, schedule preventive actions, and extend component lifespans. From a project planning perspective, the plug-in ready design reduces spare-parts inventory and accelerates time-to-value during deployment. In practice, manufacturers report shorter commissioning cycles, improved line reliability, and measurable efficiency gains when upgrading to ACS580-01.
Get a Quick Quote for a ABB 3ABD00046564-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046564-D?
Enquire Now
FAQs
The ACS580-01 is designed for straightforward wall-mount installation with standard AC mains input and motor output connections. It integrates with common industrial controls via its built-in parameter assistants, configurable I/O, and compatible control interfaces, enabling seamless integration with existing PLCs or SCADA systems. Follow ABB’s installation guide to verify wiring, motor ratings, and safety clearances for a reliable, code-compliant retrofit or new build.
This model delivers 75 kW of output with a rated current of 145 A, supporting variable torque and constant torque applications as required by fans, pumps, conveyors, and similar loads. Its performance features enable smooth speed shaping, soft starts, and stable process control, which translates to reduced energy consumption and extended motor life when used within its rated envelope.
Yes. The ACS580-01 is suited for light-industrial applications including food and beverage conveyors, where reliable motor control, compact footprint, and easy integration matter. Its rugged design, standard IP21 enclosure, and optional IP55/flange mounting support make it adaptable to processing environments that require clean operation, dependable uptime, and straightforward maintenance.
The standard enclosure is IP21, offering basic protection for general indoor use. For harsher environments, IP55 and flange-mount options are available to improve ingress protection and mounting flexibility. While precise regulatory certifications should be confirmed for your region, these ratings provide a clear baseline for accommodating light-industrial applications.
The ACS580-01 includes built-in diagnostics, intuitive setup, and maintenance-assist features that reduce downtime and service complexity. Energy efficiency is enhanced through precise torque and speed control, minimizing wasted energy in pumps and fans. In practice, upgrades from older drives typically yield shorter commissioning times, less spare-parts inventory, and measurable total-cost-of-ownership reductions.
