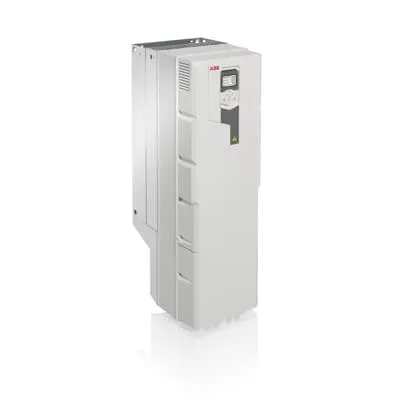

ABB ACS580-01-246A-4+N7511+J404 Drive - IP21 Wall-Mounted
Part Number: 3ABD00046567-D
Quick Summary
The ABB ACS580-01-246A-4+N7511+J404 drive is a wall-mounted LV AC drive for compressors, conveyors, and pumps. Lengthy setup, compatibility gaps, and maintenance complexity are common pain points that slow time-to-value in industrial sites. CE certification and IP21 protection come standard, with IP55 and flange-mount options to address tougher environments. This combination enables faster commissioning, reduces BOM complexity, and delivers reliable process control, while seamless integration with ABB’s drive ecosystem supports measurable efficiency gains and improved lifecycle value for your plant.
Product Information
Extended Description
3ABD00046567-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Plug-in ready, wall-mounted LV AC drive designed for fast deployment. Business Impact: Minimizes commissioning time and reduces field wiring, lowering total installation costs. Application: Ideal for compressors, conveyors, and pumps in light-industrial lines. Feature: Built-in essential features standard, no extra hardware required. Business Impact: Simplifies drive selection, reduces spare parts, and improves system reliability. Application: Suitable for food & beverage, plastics, textile, material handling, and agriculture environments. Feature: Intuitive settings menu and assistants for fast setup. Business Impact: Accelerates commissioning and reduces operator training needs. Application: Plant-wide control of variable torque and constant torque processes in mid-size facilities. Feature: Rugged IP21 enclosure; IP55 and flange mounting options. Business Impact: Adaptable to ambient conditions and various mounting configurations, lowering installation risk. Application: Production lines with conveyors and fans in moderate environments. Feature: High power rating of 132 kW and 246 A. Business Impact: Handles large motors with precise torque control, improving energy efficiency and process stability. Application: Heavy-duty conveyors, pumps, and compressors. Feature: CE compliance and robust design with minimal external hardware. Business Impact: Reduces compliance risk and maintenance overhead; supports seamless integration within ABB automation ecosystems. Application: Industrial plants with regulatory requirements and a need for reliable long-term operation.
Get a Quick Quote for a ABB 3ABD00046567-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046567-D?
Enquire Now
FAQs
This drive is plug-in ready with an IP21 enclosure by default and is designed for quick wall mounting. Connect power and motor leads, use the built-in setup assistants to configure basic parameters, and verify motor protection settings. If IP55 or flange mounting is required, use the appropriate optional kit and follow the ABB installation guide for conduit routing and safety clearances.
The drive delivers up to 132 kW of output power with a maximum current of 246 A. It ships with an IP21 enclosure as standard, with IP55 and flange mounting options available. It is designed for variable torque and constant torque applications across light-industrial loads such as compressors, conveyors, and pumps.
Yes, the ACS580-01-246A-4+N7511+J404 is CE certified, reflecting compliance with essential safety and EMC requirements. Its built-in features reduce external hardware needs, and it integrates smoothly with ABB’s broader drive and automation portfolio, supporting consistent engineering standards and easier maintenance across plant networks.
Ideal for compressors, conveyors, and pumps in light industries such as food & beverage, plastic, textile, and agriculture. It also supports fans and mixers where precise speed control and reliable performance are required. The IP21 enclosure and optional IP55/ flange options broaden compatibility with various installation environments.
The device’s plug-in ready design, built-in features, and intuitive setup reduce commissioning time and BOM complexity, lowering upfront costs. Energy-efficient speed control lowers operating expenses, while the rugged build and standard protections minimize maintenance needs and spare-part usage over the drive’s lifecycle.
