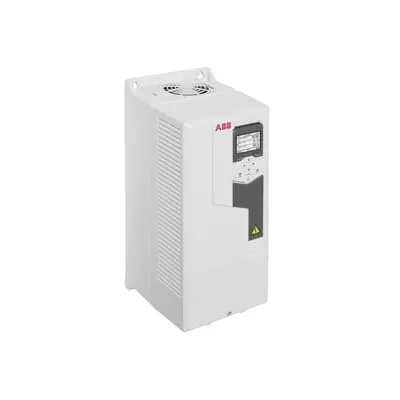

ABB ACS580-01-046A-4+N7511+J404 Drive - IP21 IP-rated enclosure
Part Number: 3ABD00046582-D
Quick Summary
ACS580-01 drive is a general‑purpose LV AC wall‑mounted drive for compressors, conveyors, and pumps. Engineers often struggle with complex wiring, long setup times, and inconsistent commissioning. This plug‑in ready solution simplifies drive selection and accelerates startup with a straightforward settings menu and setup assistants. It ships in an IP21 enclosure by default, with IP55 and flange‑mount options available for tougher environments, and is designed to meet CE safety standards for industrial automation. By consolidating essential features into a single platform, the ACS580‑01 helps reduce hardware costs, minimize maintenance, and deliver reliable process control across light industries like food and beverage, plastics, textiles, and agriculture.
Product Information
Extended Description
3ABD00046582-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application. Plug-in ready architecture with built‑in control tools reduces wiring, speeds commissioning, and lowers installation risk for new lines or retrofits, enabling faster time-to-prod for compressors, conveyors, and pumps. This translates to measurable uptime improvements and lower total cost of ownership in mid‑scale packaging lines, material handling setups, and process cooling loops. 22 kW rating with 45 A current provides robust mid‑power capability for fans, extruders, and pumps without requiring oversized drives, supporting energy‑efficient speed control and smoother torque delivery in high‑load scenarios. IP21 standard enclosure ensures straightforward installation on factory floors; IP55 and flange‑mount options expand deployment in damp or vibrating environments, improving lifecycle reliability and maintenance planning. Intuitive setup assistants shorten commissioning, reduce engineering hours, and improve changeovers in plastics, textile, and agricultural processing lines. The rugged, compact wall‑mounted form factor simplifies retrofits in constrained spaces while maintaining easy access for diagnostics and service.
Get a Quick Quote for a ABB 3ABD00046582-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046582-D?
Enquire Now
FAQs
The ACS580-01 is designed for low‑voltage AC applications and ships in an IP21 wall‑mounted enclosure, with IP55 and flange mounting options available for more demanding environments. It supports typical 3‑phase, 400 V class systems found in light industrial plants. For installation, place the drive in a ventilated area, ensure proper cable routing, and use the included setup assistants to configure motor parameters, protection settings, and safety interlocks. Always follow the manufacturer’s installation manual and local electrical codes during mounting and wiring.
Key specs include a 22 kW power rating and 45 A current, enabling reliable speed control for medium‑power motors. The drive supports variable and constant torque applications, delivering smooth start/stop, accurate speed regulation, and energy‑efficient operation. It is suitable for compressors, conveyors, pumps, extruders, and fans in light industry, with built‑in features that simplify tuning and protection to maintain consistent process performance.
Ideal for light‑industrial applications such as food and beverage processing, plastics, textile production, material handling, and agriculture. It excels in controlling compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans where plug‑in readiness, fast commissioning, and reliable operation are critical. The compact wall‑mounted design supports retrofit projects in space‑constrained environments, facilitating quicker deployment across multiple production lines.
The ACS580‑01 is designed for industrial use with CE safety compliance and an IP21 enclosure standard. Optional IP55 and flange mounting configurations extend protection in harsher environments. These certifications and options support regulatory compliance and safer operation in manufacturing settings, helping to meet plant safety policies while delivering robust control for mixed load profiles.
Benefits include reduced hardware footprint due to plug‑in readiness, simplified commissioning with built‑in setup assistants, and lower maintenance costs from a robust, single‑vendor drive solution. Energy‑efficient speed control reduces motor energy consumption, improving operating margins. Quick diagnostics and intuitive menus also shorten downtime during changeovers, supporting a favorable total cost of ownership in light‑industrial automation projects.
