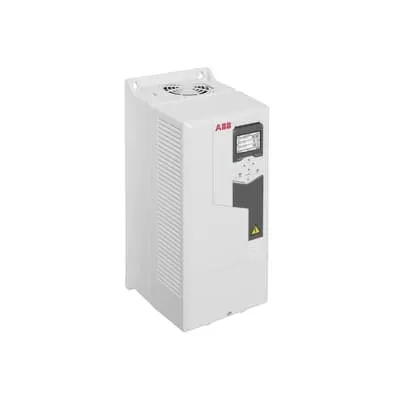

ABB 3ABD00046596-D ACS580-01 Wall-Mounted Drive - IP21
Part Number: 3ABD00046596-D
Quick Summary
ABB ACS580-01 wall-mounted drive is a precise motor controller designed for light-industrial equipment such as compressors, conveyors, and pumps. Users often battle long commissioning times and complex parameter tuning; this drive provides plug‑and‑play setup, guided assistants, and straightforward maintenance to minimize downtime. It ships in a standard IP21 enclosure, with IP55 and flange-mount options to fit varied environments, and is designed to support CE-compliant automation in rugged plants. By combining built-in features with a compact form factor, it enables reliable process control, seamless integration with existing automation, and clear value through reduced maintenance and operational costs.
Product Information
Extended Description
3ABD00046596-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Plug-in ready architecture reduces hardware needs and accelerates procurement and installation. Benefit: Shorter project timelines and lower BOM costs enable faster time-to-value for light-industrial lines. Application: Suitable for compressors, conveyors, and pumps where quick deployment is critical. Feature: Built‑in essential features and straightforward settings menus. Benefit: Simplified commissioning and easier ongoing maintenance minimize downtime and operator training. Application: Ideal for plants seeking reliable control with minimal external hardware and quick troubleshooting. Feature: IP21 enclosure standard with IP55 and flange mounting options. Benefit: Installation flexibility across environments and equipment layouts; better protection where space or exposure varies. Application: Packaging lines, material handling, and process areas with diverse mounting needs. Feature: Rugged, robust design for challenging environments. Benefit: Enhanced uptime and longer service life in demanding facilities such as food & beverage, plastic, and textile operations. Application: Any line where vibration, dust, or temperature variation are factors. Feature: Wall-mounted form factor with compatible ACS580 family architecture. Benefit: Easy retrofits and compact installation for retrofit projects or space-constrained plants. Application: Retrofits in conveyors, fans, and pumps where panel space is at a premium.
Get a Quick Quote for a ABB 3ABD00046596-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046596-D?
Enquire Now
FAQs
Key considerations include selecting the standard IP21 enclosure or opting for IP55 or flange mounting for harsher environments, ensuring adequate ventilation and clearance for heat dissipation, and verifying supply voltage compatibility with the ACS580-01 model. The device is wall-mounted for space efficiency, with a 18.5 kW (Pn) rating and 38 A current, making correct mounting and airflow essential for reliable operation.
The ACS580-01 provides precise motor speed control through variable frequency drive technology, reducing motor inrush and preventing unnecessary flow or torque. This leads to smoother starts, optimized torque profiles, and reduced energy consumption on compressors, conveyors, pumps, and fans, translating into lower operating costs and improved process stability.
Yes. The drive is designed for plug-in readiness with built-in configuration assistants and a straightforward settings menu, enabling fast integration with ABB and third-party automation architectures. Its modular design supports easy commissioning within plant control schemes and simplifies ongoing maintenance across mixed equipment lines.
Optimal applications include light-industrial compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans. Its ability to handle both variable and constant torque loads, combined with IP-rated enclosures and a compact wall-mounted form factor, makes it ideal for retrofit projects and new lines in manufacturing environments with space constraints.
Plan routine checks for cooling airflow, verify enclosure integrity (IP21 standard with optional IP55), and monitor parameter integrity via the built-in assistant tools. The ACS580-01’s integrated features reduce external hardware needs, support remote diagnostics, and simplify spare-part planning, contributing to lower total cost of ownership and higher equipment uptime.
