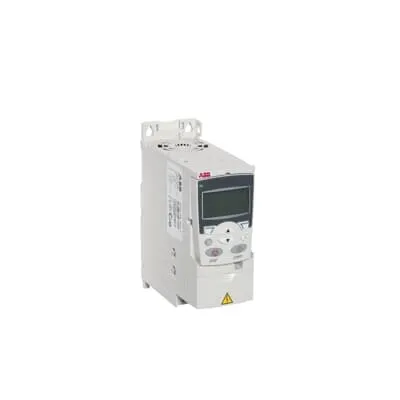

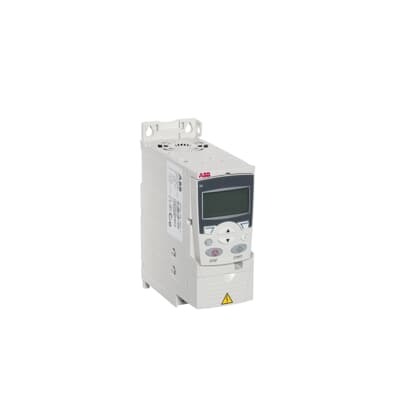

ABB 3ABD00046614 LV AC machinery drive module - ACS355-03E-05A6-4+N2002
Part Number: 3ABD00046614
Quick Summary
ABB 3ABD00046614 LV AC machinery drive module is designed to deliver precise speed and torque control for a wide range of machinery applications. The primary goal is to simplify commissioning and reduce wiring complexity by integrating core drive functions into a single compact module. Engineers often grapple with system integration, parameter tuning, and safeguarding without additional control electronics, which drives up downtime and total cost of ownership. This drive features Safe Torque Off functionality and built-in sequence programming to streamline safety and control logic. In regional deployments, it supports standard safety practices and compatible control architectures, delivering efficiency gains while reducing maintenance. The result is easier installation, scalable control options, and robust motor protection for IEC-compliant operations.
Product Information
Extended Description
3ABD00046614 ABB: The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications. The drive are user-friendly, yet provide a wide range of built-in technology, such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.
Feature → Business Impact → Application: Safe Torque Off (STO) and safety features minimize risk and reduce external safety circuitry, cutting enclosure and wiring costs. This built-in protection accelerates commissioning and improves regulatory alignment, especially in high-volume packaging lines and material-handling conveyors. Feature → Business Impact → Application: Integrated sequence programming and a user-friendly interface streamline programming and reduce wiring complexity, shortening downtime during changeovers and maintenance. For industries like food and beverage or textiles, this means faster recipe changes and safer, repeatable operations. Feature → Business Impact → Application: Rated 2.2 kW with 5.6 A supports precise speed and torque control for AC induction and permanent magnet motors, enabling smooth acceleration and energy efficiency. This translates to reduced energy consumption and improved process stability in lifting, printing, and plastics processing. Feature → Business Impact → Application: Compact, modular drive reduces panel space and simplifies installation; compatibility with standard control architectures minimizes integration time with existing PLCs. This makes retrofits easier in existing lines and supports scalable automation across small to mid-size machines. Feature → Business Impact → Application: The ACS355 family is well-suited for diverse industries—food & beverage, material handling, woodworking, and more—offering robust protection and straightforward setup. Long-term cost savings come from lower maintenance, fewer spare parts, and easier compliance reporting.
Get a Quick Quote for a ABB 3ABD00046614
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046614?
Enquire Now
FAQs
The 3ABD00046614 module is designed to integrate with standard ABB drive architectures and existing PLC controls. Verify supply voltage matches the 2.2 kW rating, confirm motor type (AC induction or PM motor), and ensure wiring to the N2002 options. The compact form factor helps retrofit projects with minimal panel space changes, reducing installation time and wiring complexity.
With a 2.2 kW rating and 5.6 A current, you can expect smooth acceleration, precise speed regulation, and reliable torque control for both induction and permanent magnet motors. This supports energy-efficient operation and stable process control in conveyors, lifting systems, and processing equipment, while allowing safer, repeatable startup and reduced mechanical wear.
Safe Torque Off is built into the ACS355-based module to ensure immediate de-energization of motor torque without active motion, enhancing operator safety. Configuration typically involves connecting the STO input to a safe, interlocked circuit and programming safe stop sequences that align with your machine safety policy. This reduces risk during maintenance and changeovers.
Industries such as food and beverage, material handling, lifting, textiles, printing, rubber and plastics, and woodworking benefit from its integrated safety features, compact installation, and flexible control options. The module supports scalable automation, easier retrofits, and reduced total cost of ownership due to fewer external controllers and simplified commissioning.
ROI improves through lower upfront wiring, reduced panel space, and fewer external control components. Maintenance benefits include fewer spare parts, integrated safety functions, and longer motor life due to smoother torque control. Overall, you gain faster setup, easier compliance reporting, and less downtime during changeovers and routine servicing.
