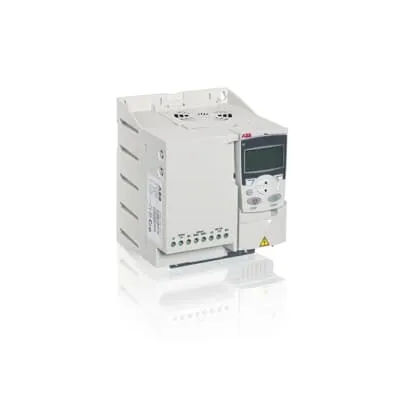

ABB 3ABD00046619 LV AC Machinery Drive Module - ACS355-03E-23A1
Part Number: 3ABD00046619
Quick Summary
ABB ACS355 drive module delivers precise speed and torque control for LV AC machinery across multiple industries. Engineers often struggle with integrating safety, sequencing, and motor coordination using disparate components, leading to longer timelines. This family typically supports CE conformity and IP-rated protection, with Safe Torque Off safety features to align with SIL-based safety architectures. The module's built-in options reduce external hardware and simplify commissioning, helping procurement teams streamline sourcing across lines. By embracing ABB ACS355, your operation benefits from scalable control, energy efficiency, and faster time-to-value. Designed for compatibility with AC induction and permanent magnet motors, it supports modern, energy-conscious machine designs. This translates to reduced maintenance costs and shorter downtime during upgrades.
Product Information
Extended Description
3ABD00046619 ABB: The ACS355 drives are designed to meet the requirements of an extensive range of machinery applications in food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking applications. The drive are user-friendly, yet provide a wide range of built-in technology, such as the safe torque off functionality and sequence programming, reducing the need for additional control electronics. The product offers options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors.
Power and control rating: The ACS355 drive is rated at 11 kW (Pn) and 23.1 A, allowing compact, space-efficient motor control for mid-range machinery. This rating supports predictable thermal performance and enclosure sizing, reducing cooling loads and wiring complexity. Applications include conveyors, packaging lines, and lifting mechanisms in food, beverage, and material-handling environments. Safety and automation features: Safe Torque Off (STO) and sequence programming are built into the drive, reducing the need for external safety modules and extra control electronics. This directly improves compliance with machine-safety standards and speeds up commissioning. Applications span robotic pick-and-place, textile processing, and printing equipment. Motor compatibility: The ACS355 drives can control both AC induction and permanent magnet motors, enabling energy-efficient operation and better torque control across the load spectrum. The result is lower energy consumption and higher process stability on lines that demand precise speed control. Industries such as textile, rubber, and plastics benefit from smoother start-up and reduced motor wear. Flexibility and options: The drive offers built-in options and diverse functionality to tailor speed and torque profiles to exact process requirements. This flexibility reduces process deviations, supports customization, and lowers total cost of ownership by cutting spare-part complexity. End-users in packaging, woodworking, and automation-heavy applications appreciate faster changeovers and more predictable outputs. Installation and lifecycle: The compact module design minimizes wiring and simplifies field installation, while its diagnostics and programming capabilities help predict maintenance needs. Operators see reduced installation labor, lower downtime during upgrades, and longer asset life when integrated into existing control architectures.
Get a Quick Quote for a ABB 3ABD00046619
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046619?
Enquire Now
FAQs
The ACS355 drive module is designed for LV AC machinery and supports control of AC induction and permanent magnet motors. It simplifies integration by providing essential speed and torque control in a single package, reducing the need for multiple controllers and external wiring. Ensure motor rating aligns with the 11 kW (Pn) and 23.1 A specification to optimize performance and protection strategies.
Key specifications include 11 kW (Pn) power and 23.1 A current rating, with Safe Torque Off (STO) and sequence programming built in. It targets speeds and torques appropriate for mid-range machinery, enabling reliable performance across conveyors, lifting equipment, and packaging lines while supporting a compact footprint.
Yes. The ACS355 family is designed for diverse industries, including food and beverage, material handling, lifting, textile, printing, rubber and plastics, and woodworking. Its STO safety feature and programmable logic help meet process requirements, maintain consistent product quality, and support rapid changeovers in manufacturing environments.
The drive emphasizes safety functionality, including Safe Torque Off (STO), and is described in terms of conformity to CE-like safety expectations and general IP-rated protection. For SIL-based safety architectures, STO provides a safety mechanism compatible with common industrial safety practices, though exact certification scope should be verified with the supplier for your region.
ROI benefits stem from reduced external hardware, simplified commissioning, and fewer control electronics, which translate to lower installation costs and faster time-to-value. Energy-efficient motor control with PM and induction motors also contributes to lower operating costs over the equipment lifecycle, with improved uptime and easier maintenance planning.
