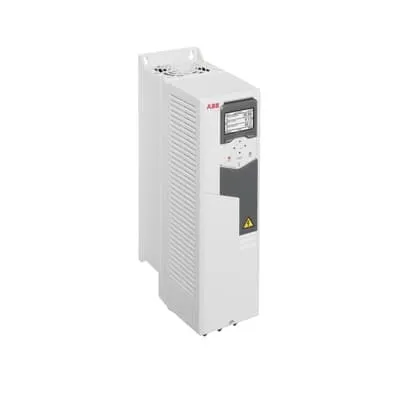

ABB ACS580-01-018A-4+B056+X1582 Wall-Mounted Drive - IP21
Part Number: 3ABD00046693-D
Quick Summary
ACS580-01-018A-4+B056+X1582 is a LV AC general purpose wall-mounted drive for compressors, conveyors, pumps, and more. Many drives require complex setup and ongoing maintenance, leading to downtime and costly delays; this unit emphasizes fast configuration, reliable operation, and simple commissioning. Key certifications and ratings include IP21 enclosure as standard, with IP55 and flange mounting options available for tougher environments, and design that supports European CE expectations in standard industrial deployments. By integrating essential features into the drive itself, ABB reduces cabling, simplifies maintenance, and accelerates time-to-value for automation projects. For manufacturers seeking scalable control, this drive delivers predictable performance, energy efficiency, and straightforward integration with existing motor assets.
Product Information
Extended Description
3ABD00046693-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: Built-in essential features simplify selection and reduce hardware needs. Benefit: Lower total cost of ownership and quicker deployment across multiple lines. Application: Suitable for light-industrial applications where rapid commissioning is critical. Feature: Plug-in ready with a versatile settings menu and assistants. Benefit: Fast setup, intuitive commissioning, and reduced training requirements. Application: Ideal for conveyors, mixers, and fan systems in food, plastics, and textiles. Feature: Rugged, robust design with a standard IP21 enclosure (IP55 option available). Benefit: Enhanced reliability in variable environments and easier cabinet integration. Application: Control panels in packaging lines and material handling. Feature: Wall-mounted form factor and space-efficient footprint. Benefit: Easy retrofits and improved machine spacing without large enclosures. Application: Control of compact packaging and small- to mid-scale process equipment. Feature: Wide application range with support for variable and constant torque. Benefit: Precise motor control reduces energy waste and extends equipment life. Application: Pumps, compressors, extruders, and fans across light industries. Insight: The ACS580 family integrates many core capabilities to minimize external hardware, simplify maintenance, and support scalable automation strategies, reflecting ABB’s approach to reliable, energy-efficient motor control in modern plants.
Get a Quick Quote for a ABB 3ABD00046693-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046693-D?
Enquire Now
FAQs
The ACS580-01-018A-4+B056+X1582 is designed for plug-in compatibility with standard three-phase LV mains. Mount it on a wall or within a compatible enclosure, connect the three-phase supply to the drive terminals, and wire the motor to the output terminals. Use the built-in setup wizard for initial parameterization. Ensure supply voltage matches the drive’s rating and consult the IP21 enclosure guidelines; IP55 options expand mounting choices for challenging environments.
This model delivers 7.5 kW and 17 A in a wall-mounted form factor, with support for both variable and constant torque operations. The built-in control algorithms optimize speed and torque to match load profiles such as fans, pumps, and conveyors. This translates to smoother start/stop behavior, reduced mechanical stress, and measurable energy savings across daily operation.
Yes. The drive is designed for light industries, including food and beverage, plastics, textiles, and material handling. Its IP21 enclosure is standard, with IP55 options available, helping to meet hygiene and washdown considerations while providing robust protection. The compact, space-saving wall-mount design simplifies retrofits in existing packaging and conveying lines without sacrificing control fidelity.
The drive comes with an IP21 enclosure as standard, with IP55 option availability for harsher environments. While CE conformity is typical for ABB industrial drives to support European deployments, verify the specific certification package for your installation with your supplier. The product is designed to align with standard industrial safety and performance expectations for low-voltage motor control.
By integrating essential features in a single unit, the drive reduces the need for additional hardware, cables, and commissioning steps, lowering installation time and maintenance overhead. Fast setup and built-in diagnostic tools help minimize downtime and enable predictive maintenance planning. Over the project lifecycle, the drive can deliver energy efficiency gains and improved process control, contributing to a favorable ROI.
