ABB 3ABD00046696-D Motors & Drives - ACS580-01-039A-4+B056+X1582
Part Number: 3ABD00046696-D
Quick Summary

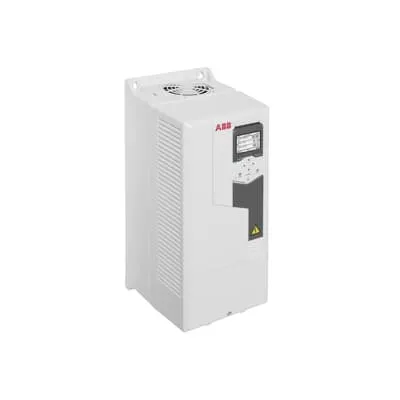

ABB 3ABD00046696-D is a wall-mounted LV AC general purpose drive that controls compressors, conveyors, pumps, and other equipment. Engineers often face lengthy setup and wiring, but this plug-in ready drive reduces commissioning time with built-in features. The product is designed for variable and constant torque applications across industries such as food and beverage, plastics, textiles, and material handling. Key protections include an IP21 standard enclosure, with IP55 variants and flange mounting options to suit harsher environments. With a rated power of 18.5 kW and 38 A, it delivers reliable control for lightweight to mid-size plant loads. In practice, engineers gain faster commissioning, reduced hardware needs, and predictable performance across automation projects.
Product Information
Extended Description
3ABD00046696-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Plug-in ready design eliminates complex field installation, reducing commissioning time and minimizing wiring errors, which translates into faster project starts and lower commissioning labor costs for HVAC, extrusion, and packaging lines. The built-in setup assistants and intuitive menus enable rapid configuration, simplified maintenance, and consistent parameter handling, producing fewer operator errors and improved uptime in conveyors, mixers, and fans. The wall-mounted ACS580-01 enclosure supports IP21 by default, with IP55 variants and flange mounting options available, offering flexible installation in clean rooms, processing plants, and rugged manufacturing environments. Compatibility with both variable and constant torque loads reduces the need for multiple drive types, enabling a single, scalable solution for compressors, pumps, extruders, and centrifuges. The rugged design and compact form factor lower enclosure space requirements while easing service access, reducing total cost of ownership over the drive’s lifecycle. Industry-focused workflows benefit from built-in assistants that guide commissioning, tune performance, and simplify routine maintenance tasks, translating to measurable efficiency gains in production lines and material handling systems. The ACS580 family’s robust control features support energy-aware operations and predictable process behavior, helping plants meet regulatory and quality standards while maintaining smooth control of fans, mixers, and other critical equipment.
Get a Quick Quote for a ABB 3ABD00046696-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046696-D?
Enquire Now
FAQs
The 3ABD00046696-D is a plug-in ready, wall-mounted LV AC drive designed for compressors, conveyors, and pumps. It connects to standard 3-phase motors and uses built-in assistants to simplify parameter setup. For compatibility, mount the unit in an IP21 enclosure (IP55 variants available) and ensure wiring conforms to your plant’s control architecture. This reduces field wiring and speeds integration with existing automation systems.
The drive is rated at 18.5 kW with a current capability of 38 A. It supports variable and constant torque applications, enabling precise speed and torque control for a range of loads such as fans, pumps, and conveyors. Its robust design helps maintain consistent performance in typical industrial environments, contributing to predictable process control and reduced mechanical wear.
Yes. The ACS580-01 driven unit is designed for broad automation applications including food & beverage, plastics, textiles, material handling, and agriculture. Its plug-in ready functionality, rugged enclosure, and built-in setup tools streamline commissioning for compressors, conveyors, and pumps commonly found in these sectors, supporting reliable process control and improved throughput.
The product ships with an IP21 standard enclosure, with IP55 variants and flange mounting options available for tougher environments. While the data notes these IP protections, ABB drives in this family are designed for European and international compliance in standard industrial settings, aligning with common regulatory expectations for control equipment in manufacturing facilities.
The drive’s built-in features reduce hardware needs and simplify maintenance, leading to lower ongoing maintenance costs and faster commissioning. The intuitive settings menu and assistants minimize operator errors and startup time, improving uptime and process consistency. Across lines such as conveyors and pumps, these efficiencies translate into shorter project cycles and a lower total cost of ownership.
