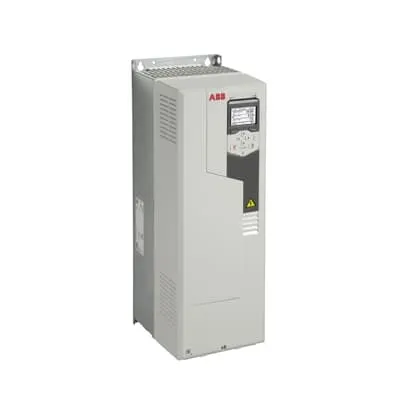

ABB ACS580-01-062A-4+B056+X1582 - IP21 Wall-Mounted Drive
Part Number: 3ABD00046698-D
Quick Summary
ACS580-01-062A-4+B056+X1582 is a wall-mounted LV drive that controls compressors, conveyors, and pumps. Engineers often struggle with long setup times, wiring complexity, and maintenance overhead when deploying variable-torque systems. It provides IP21 protection by default, with IP55 and flange-mount options to suit different environments and a CE-like safety alignment. Taken together, its plug-in readiness and built-in assistants enable faster commissioning, while robust control supports energy-efficient operation and reliable plant performance.
Product Information
Extended Description
3ABD00046698-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Plug-in ready design accelerates deployment and reduces hardware footprint, enabling faster project timelines and lower initial costs. Business impact: shorter commissioning cycles and lower installation risk in new lines or upgrades; Application: compressors, pumps, conveyors, and fans in light industry. IP21 standard enclosure with IP55 and flange mounting options provides installation flexibility, lowering the need for custom housings and enabling compliant outdoor or harsh environments where applicable. This reduces downtime and supports safer, more consistent maintenance windows; Application: plant-wide drive integration and retrofit projects. Built-in essential features and a straightforward settings menu minimize additional hardware, simplify commissioning, and improve operator confidence. Business impact: fewer spare parts, simpler maintenance, and improved reliability; Application: general purpose variable and constant torque control. Robust mechanical design and compact footprint suit space-constrained panels, allowing easy retrofits in existing lines; Application: food and beverage, plastics, textiles, agriculture. The drive’s compatibility with compressors, extruders, centrifuges, mixers, and fans supports a wide range of process lines, delivering energy efficiency and scalable performance for growing production needs. Business impact: optimized energy use, reduced operating costs, and a clear path to digital expansion; Application: multi-brand automation environments and modernized plant floors.
Get a Quick Quote for a ABB 3ABD00046698-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046698-D?
Enquire Now
FAQs
Install the wall-mounted LV drive in a suitable panel with enough clearance for heat dissipation and wiring. Connect 3-phase supply and motor leads per the ACS580 wiring diagram, then use the built-in setup menu and assistants to configure motor parameters, protection settings, and drive communication. The IP21 enclosure provides basic protection; consider IP55 or flange mounting options for harsher environments.
This drive supports compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans, covering a wide range of light-industrial processes. With variable and constant torque control, it is ideal for start/stop-intensive equipment and systems requiring smooth speed regulation, energy efficiency, and simplified control in manufacturing lines such as food, plastics, textiles, and agriculture.
The ACS580-01-062A-4+B056+X1582 is rated for a 30 kW output with a 62 A current draw. It is designed for LV AC applications and is available in a wall-mounted form factor. Default IP21 protection is standard, with IP55 and flange mounting options to suit installation. It is plug-in ready and includes built-in configuration features to streamline setup.
The drive ships with a standard IP21 enclosure for wall mounting. Optional IP55-rated variants and flange mounting units are available to accommodate more demanding environments or space-constrained installations. This flexibility supports easier retrofits in existing lines and better protection in challenging factory layouts.
Expect faster commissioning due to plug-in readiness and built-in setup assistants, reducing engineering time and on-site wiring. The integrated features minimize external hardware, lowering upfront costs and spare-part inventory. A robust, compact design contributes to longer service intervals and lower maintenance effort, while improved process control drives energy efficiency and consistent production quality.
