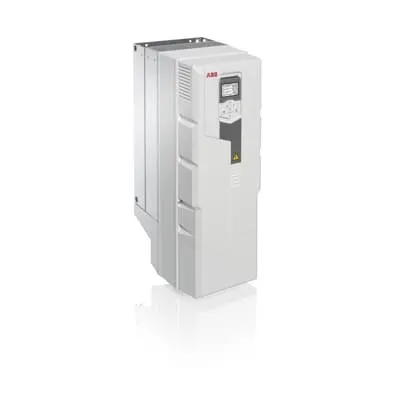

ABB ACS580-01-145A-4 - IP21 Wall-Mounted Drive
Part Number: 3ABD00046702-D
Quick Summary
ACS580-01 wall-mounted drive from ABB delivers precise motor control for compressors, conveyors, pumps, and fans. Engineers often battle lengthy setup and commissioning; this drive simplifies configuration with built-in assistants and plug-in readiness. It ships in an IP21 enclosure by default, with IP55 and flange mounting options to meet harsher environments and aligns with CE marking for European standards. The result is faster deployment, reduced maintenance, and predictable performance in light-industrial automation. The variable speed drive helps you optimize energy use, extend equipment life, and reduce total cost of ownership. Whether you’re replacing legacy drives or upgrading to remote monitoring, this solution scales with your plant.
Product Information
Extended Description
3ABD00046702-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature → Business Impact → Application: The ACS580-01 is plug-in ready with built-in setup assistants, reducing commissioning time and minimizing external hardware needs, which lowers initial and ongoing costs across production lines. Application-wise, it suits compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans, supporting efficient control in light industries. Feature → Business Impact → Application: The compact wall-mounted form and rugged design deliver space savings in electrical panels while maintaining reliability in environmental conditions common to manufacturing floors; IP21 is standard with IP55 and flange mounting options available for harsher environments. Feature → Business Impact → Application: The drive provides robust torque and speed control across variable torque and constant torque loads, enabling precise process management and energy savings in food & beverage, plastics, textiles, and material handling. Feature → Business Impact → Application: Built-in configuration tools and a straightforward settings menu help maintenance teams reduce downtime and simplify upgrade paths, supporting faster repair cycles and longer asset life. Feature → Business Impact → Application: Integration with existing automation architectures is streamlined, reducing integration risk and enabling quick deployment in modern plant environments, including remote monitoring scenarios and scalable automation projects.
Get a Quick Quote for a ABB 3ABD00046702-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046702-D?
Enquire Now
FAQs
The ACS580-01-145A-4 is designed as plug-in ready with built-in setup assistants, reducing commissioning time. It supports standard control interfaces used in ABB and non-ABB systems, enabling straightforward connection to existing PLCs, HMIs, and fieldbus networks. The device’s straightforward configuration flow helps you minimize integration risk and accelerate project timelines.
Key specs include a 75 kW power rating and a 145 A current rating for the Pn 75 kW model. These values determine the motor size you can drive with this unit for constant or variable torque loads. The drive supports precise speed control, enabling energy-efficient operation and reduced mechanical wear across varying loads.
Yes. ABB positions the ACS580-01 for light industries, including food & beverage, plastics, textiles, material handling, and agriculture. Its rugged design, integrated configuration tools, and built-in protection features help maintain consistent process performance in mixers, fans, conveyors, and pumps typical of these sectors.
The standard enclosure is IP21, suitable for general indoor use, with IP55 and flange mounting options available for harsher environments. The design aligns with common European compliance expectations (CE marking). These protections support safer operation and broader installation flexibility across plant layouts.
Built-in setup assistants and plug-in readiness shorten the commissioning phase, lowering labor costs. The rugged, compact design reduces panel footprint and cabling, while energy-efficient motor control lowers operating costs over the asset’s life. These factors together improve uptime, reduce maintenance interventions, and shorten payback for automation upgrades.
