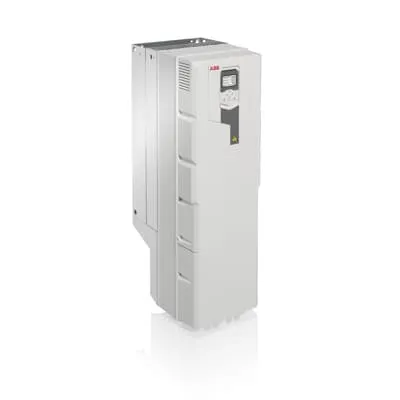

ABB ACS580-01-246A-4+B056+X1582 Drive - IP21 Enclosure
Part Number: 3ABD00046705-D
Quick Summary
The ABB ACS580-01 LV AC wall-mounted drive provides precise control for compressors, conveyors, pumps, and similar equipment. By offering plug‑and‑play setup and built‑in safety, it helps you reduce commissioning time and wiring complexity. The enclosure comes standard IP21 with IP55 options, and the platform is designed for light industry environments with robust protection. In addition, its easy settings menu and built‑in assistants support fast commissioning, ongoing maintenance, and reliable process control. For manufacturers seeking energy efficiency, reduced downtime, and scalable automation, the ACS580-01 delivers predictable performance across varied loads. Its rugged design simplifies procurement by combining motor control, safety features, and integration tools in one compact unit.
Product Information
Extended Description
3ABD00046705-D ABB: The ACS580-01 is plug-in ready to control your compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and many other variable and constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. A versatile and straightforward settings menu and assistants enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. With the ACS580 drives, you can easily take full control of your processes to comprehensively manage your plant. The wall-mounted ACS580-01 comes in an IP21 enclosure as standard. In addition, IP55 and flange mounting units are available.
Feature: The ACS580-01 is plug‑in ready with built‑in essential control features. Business impact: eliminates the need for extra hardware and speeds commissioning, reducing total installed cost. Application: suited to LV AC general purpose drives for compressors, conveyors and pumps in light industries. Feature: A versatile and straightforward settings menu with assistants. Business impact: minimal training required and predictable configuration, enabling faster setup and easier ongoing maintenance. Application: supports multiple machines in a single line and reduces operator error. Feature: Rugged wall‑mounted design with IP twenty one standard protection, IP fifty five option available. Business impact: improves reliability in harsh environments and expands installation options. Application: suitable for compact machines in packaging, material handling, and processing lines. Feature: Plug‑in readiness reduces wiring requirements and simplifies integration. Business impact: lowers field wiring time and speeds project delivery. Application: ideal for new builds and retrofit projects where space and time are critical. Feature: Built‑in safety features and intelligent control tools. Business impact: enhances process safety and reduces risk while ensuring consistent performance. Application: supports compliant operation in regulated environments and long‑term system stability.
Get a Quick Quote for a ABB 3ABD00046705-D
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046705-D?
Enquire Now
FAQs
Installation is straightforward with plug in readiness and built in motor control features. Begin by matching the motor rating to the drive and confirming supply voltage. Connect wiring to standard terminals and use the built in setup assistants to configure torque, acceleration, and speed ranges. This reduces wiring, shortens commissioning time, and improves overall system reliability.
Key performance specifications include a power rating of one hundred thirty two kilowatts and a current rating of about two hundred forty six amperes. The drive supports variable and constant torque, delivering precise speed control for compressors, conveyors, pumps, and fans. It features a standard IP twenty one enclosure with an IP fifty five option, suitable for light industrial environments.
Best suited for light industry processes such as food and beverage, plastics, textiles, material handling, and agriculture. It handles both torque profiles and varying loads, enabling energy efficiency and reduced downtime. The wall mounted form simplifies installation on compact machines like packaging lines, vertical conveyors, and small pumps.
Protection includes IP twenty one as standard, with an IP fifty five option for higher ingress protection. The drive is designed for safe operation with built in safety features and robust construction that suits harsh environments in light industry.
By reducing wiring and enabling fast commissioning with built in assistants, maintenance intervals are simplified and downtime is reduced. The plug in readiness and integrated torque control help optimize energy use and process stability, contributing to a faster return on investment over the life of the equipment.
