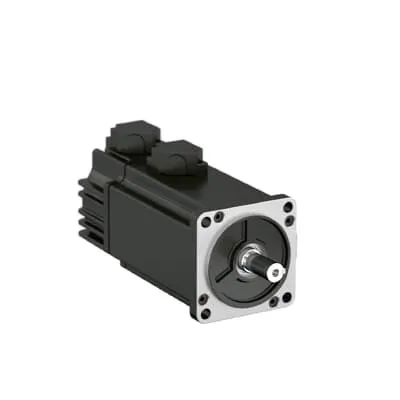

ABB 3ABD00046709 LV AC servo motor - absolute encoder
Part Number: 3ABD00046709
Quick Summary
LV AC servo motor enables precise motion control for automated production lines. Manufacturers often contend with long setups and costly downtime from homing cycles that delay production. This ABB servo family supports CE compliance and delivers rugged IP-rated protection for demanding industrial environments, with SIL-based safety options when integrated with safe-motion systems. By pairing with MotiFlex e180 and MicroFlex e190 drives, you gain higher system reliability, energy efficiency, and reduced commissioning time through encoder-based position feedback, boosting overall machine uptime and throughput.
Product Information
Extended Description
3ABD00046709 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Feature → High torque density and fast dynamic response drive higher throughput and smoother motion. Business impact → This reduces cycle times and energy consumption, lowering production costs. Application → Ideal for packaging lines, robotic pick-and-place, and CNC tooling. Feature → Absolute encoder option provides precise position feedback. Business impact → Eliminates homing cycles, shortens setup, and improves repeatability. Application → Great for automated assembly and material handling where uptime matters. Feature → Energy-efficient design. Business impact → Lowers total cost of ownership through reduced energy use and maintenance needs. Application → Beneficial in continuous operation across conveyors and automation cells. Feature → Compatibility with MotiFlex e180 and MicroFlex e190 drives. Business impact → Simplifies integration, consistent parameterization, and improved system reliability. Application → Suitable for integrated automation platforms on manufacturing floors. Feature → Low-maintenance, robust construction. Business impact → Reduces maintenance costs and extends mean time between failures. Application → Well-suited for harsh industrial environments with limited service windows.
Get a Quick Quote for a ABB 3ABD00046709
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046709?
Enquire Now
FAQs
To install ABB 3ABD00046709 with the MotiFlex e180, mount on a compatible flange, wire per the servo drive manual, and select the encoder feedback type. Verify 220 V supply and the 0.75 kW rating, use shielded cables, and ensure proper grounding to minimize EMI. Parameterize torque curves and velocity profiles on the e180 interface for consistent performance.
The motor delivers high torque density and rapid dynamic response, enabling tighter motion control and faster cycle times. With precise encoder feedback, repeatability remains stable across batches, reducing scrap. Pairing with appropriate drives allows fine-tuning of velocity feedforward and torque profiles to maximize line throughput on packaging lines.
Yes, the absolute encoder option provides definitive position feedback, eliminating homing cycles and shortening commissioning. This translates to faster startup after power cycles and improved first-run accuracy. Integration with MotiFlex e180 or MicroFlex e190 drives ensures consistent parameter transfer and reliable startup sequences across automation cells.
Verify CE compliance to meet EU safety and regulatory requirements and review any available IP ratings per the configured motor variant. If SIL-rated safety features are needed, ensure safe-motion integration and proper configuration of safe torque off and stop functions within the control system and drives.
ROI improves through reduced downtime, lower energy usage, and longer motor life due to a low-maintenance design. Absolute encoder options cut setup costs, while drive compatibility simplifies integration and spare-part management. Overall, expect lower unit costs per part and faster payback on automation projects in continuous manufacturing environments.
