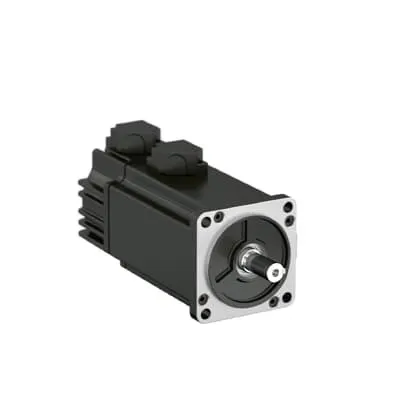

ABB 3ABD00046710 eSM Servo Motor - 0.75 kW Absolute Encoder
Part Number: 3ABD00046710
Quick Summary
The ABB eSM servo motor 3ABD00046710 delivers precise motion control for high-speed packaging and machining applications. Engineers often contend with long machine set-up times and repeated homing cycles that disrupt production. While this motor family emphasizes reliability, ABB designs align with common certifications for safety and performance, including CE electrical standards, robust IP-rated deployment, and SIL-compatible drive integration when paired with the right controller. With an absolute encoder option, you can eliminate homing, speed setup, and improve positioning accuracy, delivering reduced downtime and higher overall equipment effectiveness. This combination unlocks predictable throughput and better quality across demanding automation tasks.
Product Information
Extended Description
3ABD00046710 ABB: eSM servo motor is available in various flange sizes, with high torque density and quick dynamic response. The servo motors have a high reliable, low-maintenance, and energy efficient design. Combined with the MotiFlex e180 and MicroFlex e190 servo drives, the overall system reliability and efficiency are greatly improved. eSM motor encoder provides precise position information. An absolute encoder can eliminate homing cycles, reducing machine set-up time. All features make the motor meet the demands of higher productivity and product quality.
Absolute encoder option eliminates homing cycles, reducing start-up time and travel if the machine must reposition after power cycles. This directly boosts line uptime and improves throughput on high-mix manufacturing runs. The value is realized on automated packaging or precision machining cells where repeatable zero-travel and accurate reset points matter for yield. High torque density and fast dynamic response provide rapid acceleration and improved circular or linear motion performance, cutting cycle times and enabling tighter tolerances without oversized motors. In practice, this means faster tool changes, shorter wait states between operations, and better control during rapid jogs in complex sequences. Energy-efficient, low-maintenance design minimizes ongoing operating costs and reduces service interruptions, supporting longer production shifts and lower total cost of ownership. Compatibility with MotiFlex e180 and MicroFlex e190 drives simplifies installation, reduces integration risk, and enhances system reliability when deployed in ABB’s servo ecosystem. With multiple flange options and 220 V LV AC compatibility, retrofit projects and new lines alike gain installation flexibility, easier alignment, and scalable performance across multiple machine formats.
Get a Quick Quote for a ABB 3ABD00046710
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3ABD00046710?
Enquire Now
FAQs
To install the ABB eSM motor with MotiFlex e180, verify flange compatibility, mount the motor in a clean, vibration-minimized enclosure, and align the shaft to your driven load. Connect 220 V supply per the motor datasheet, wire the encoder to the drive, and configure the motor parameters in the VFD. Calibrate inline, set torque limits, and perform a the initial run-in sequence to ensure smooth operation. This setup minimizes alignment errors and ensures repeatable positioning across cycles.
The eSM motor provides a nominal torque of approximately 2.39 N·m with a 0.75 kW power rating at 220 V in LV AC operation. Actual speed and torque depend on load inertia, drive tuning, and control loop parameters. When paired with appropriate servo drives, you can achieve fast ramping, tight velocity regulation, and high dynamic response essential for rapid tool changes and precise positioning in automated lines.
Yes. The eSM servo motor is designed for precise positioning and high dynamic performance, which are critical for high-speed packaging. The optional absolute encoder eliminates homing cycles, improving set-up speed and repeatable origin definition. Its integration with ABB drives enhances control stability, reduces drift over time, and supports tight process tolerances, delivering higher throughput with consistent product quality in packaging contexts.
This motor is designed to align with typical automation safety and performance expectations in industrial environments, including CE electrical safety practices and compatibility with robust drive ecosystems that support SIL and IP-rated deployments. Always verify your standalone installation and enclosure rating with your integrator to ensure compliance with local regulations and your specific industry requirements.
The eSM motor emphasizes a low-maintenance, energy-efficient design, which reduces scheduled downtime and service costs. When paired with high-efficiency drives like MotiFlex e180, you gain improved uptime, faster start-up, and better process control, translating to lower energy use and higher overall equipment effectiveness (OEE). ROI is driven by reduced set-up time, improved yield, and extended motor life due to robust, simplified integration.
